Home >> Honda Truck >> 2007 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Console Subharness (EX-L only)

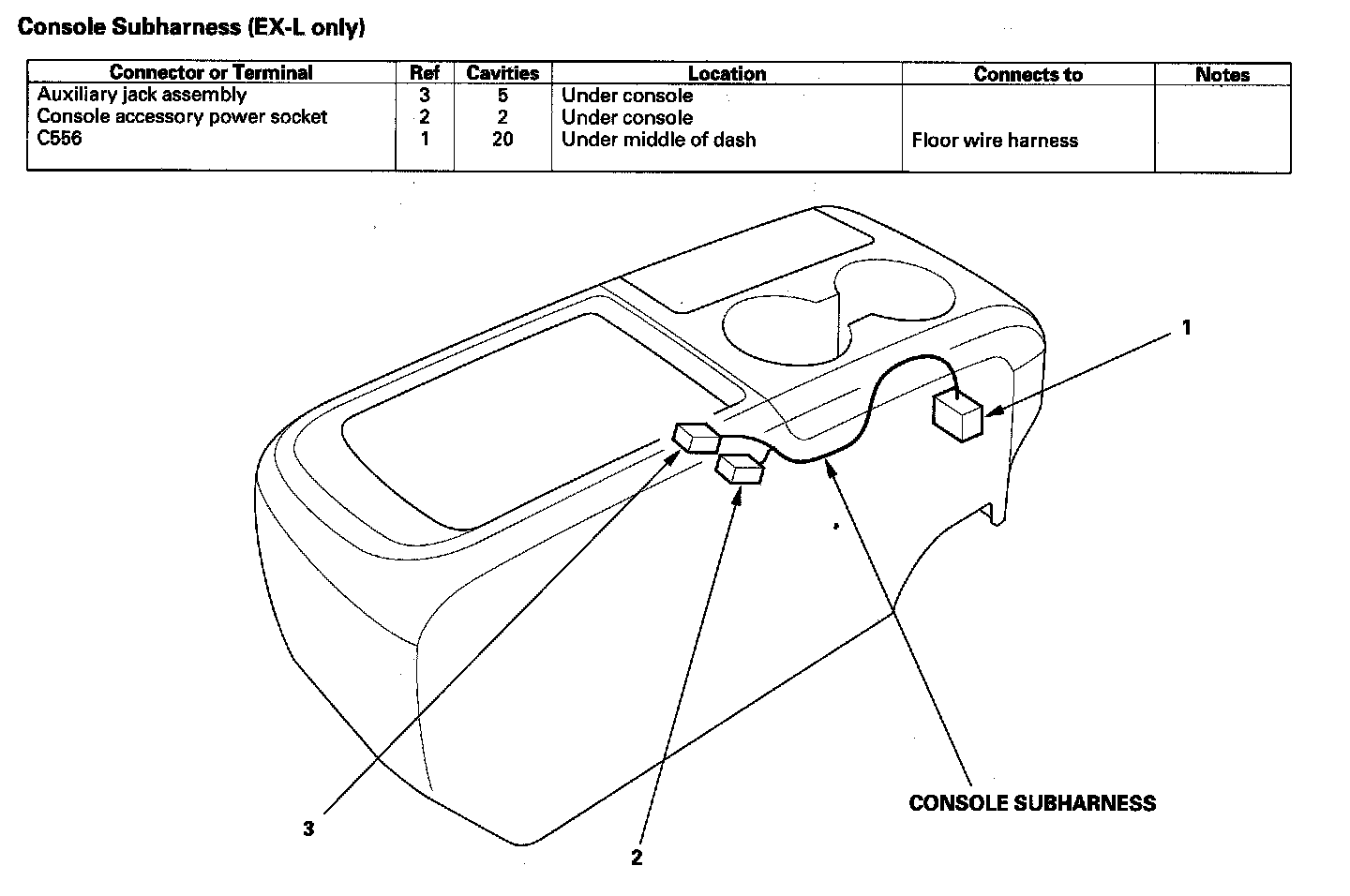

Console Subharness (EX-L only)

Console Subharness (EX-L Only):
