Boot Band Removal

Boot Band Removal

NOTE: When removing the boot bands, be careful not to damage the boot.

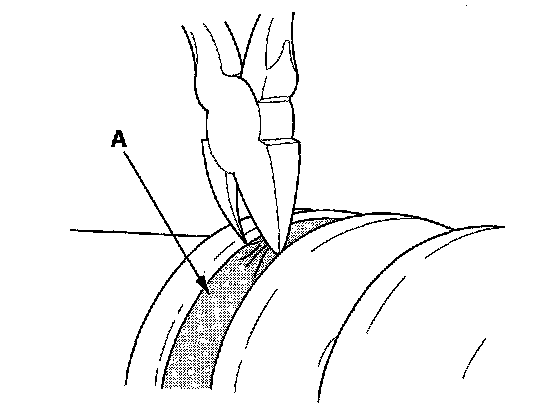

Welded Type
1. Cut the boot band (A), then remove the boot band.

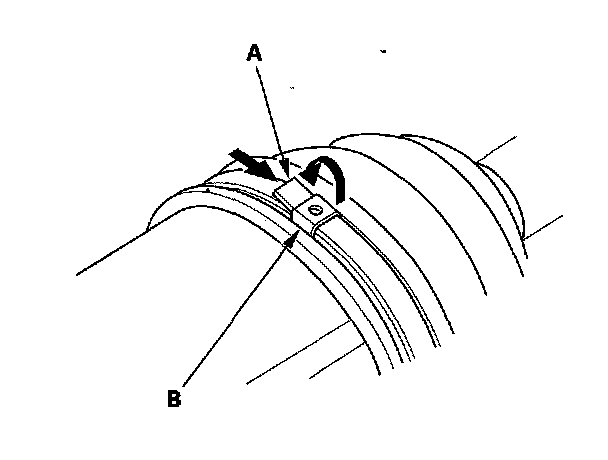

Double Loop Type
1. Lift up the band end (A), then push it into the clip (B), then remove the boot band.

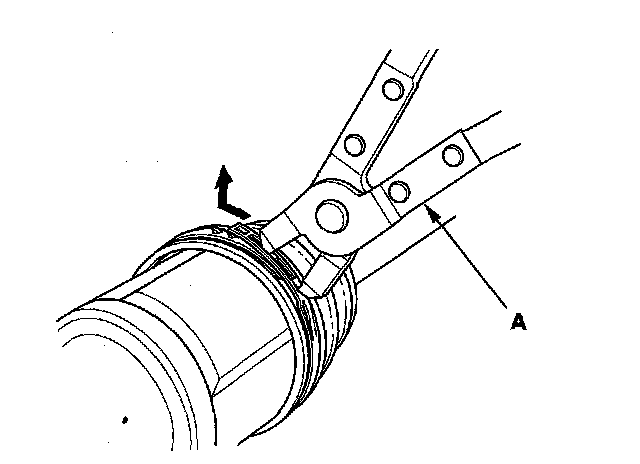

Low Profile Type
1. Pinch the boot band using commercially available boot band pliers (A), then remove the boot band.

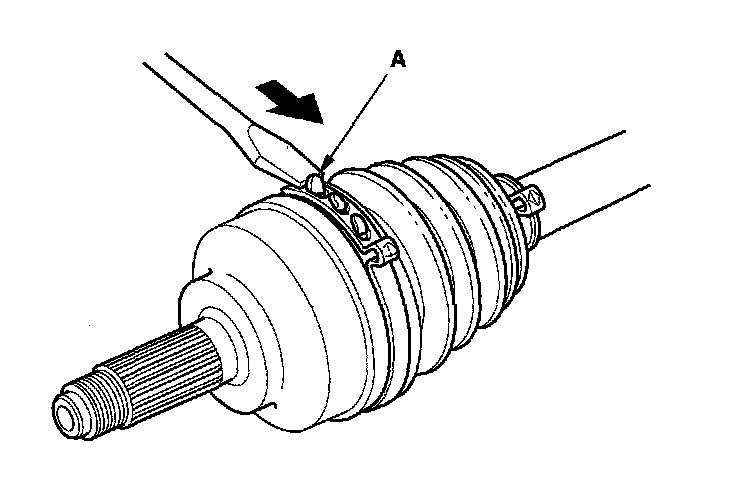

Ear Clamp Type
1. Lift up the three tabs (A) with a screwdriver, then remove the boot band.
