Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

Intermediate Shaft:

Special Tools Required
^ Driver 07749-0010000
^ Attachment, 52 x 55 mm 07NAD-P200100
^ Attachment, 35 mm I.D. 07746-0030400
^ Oil seal driver 07JAD-PL90100

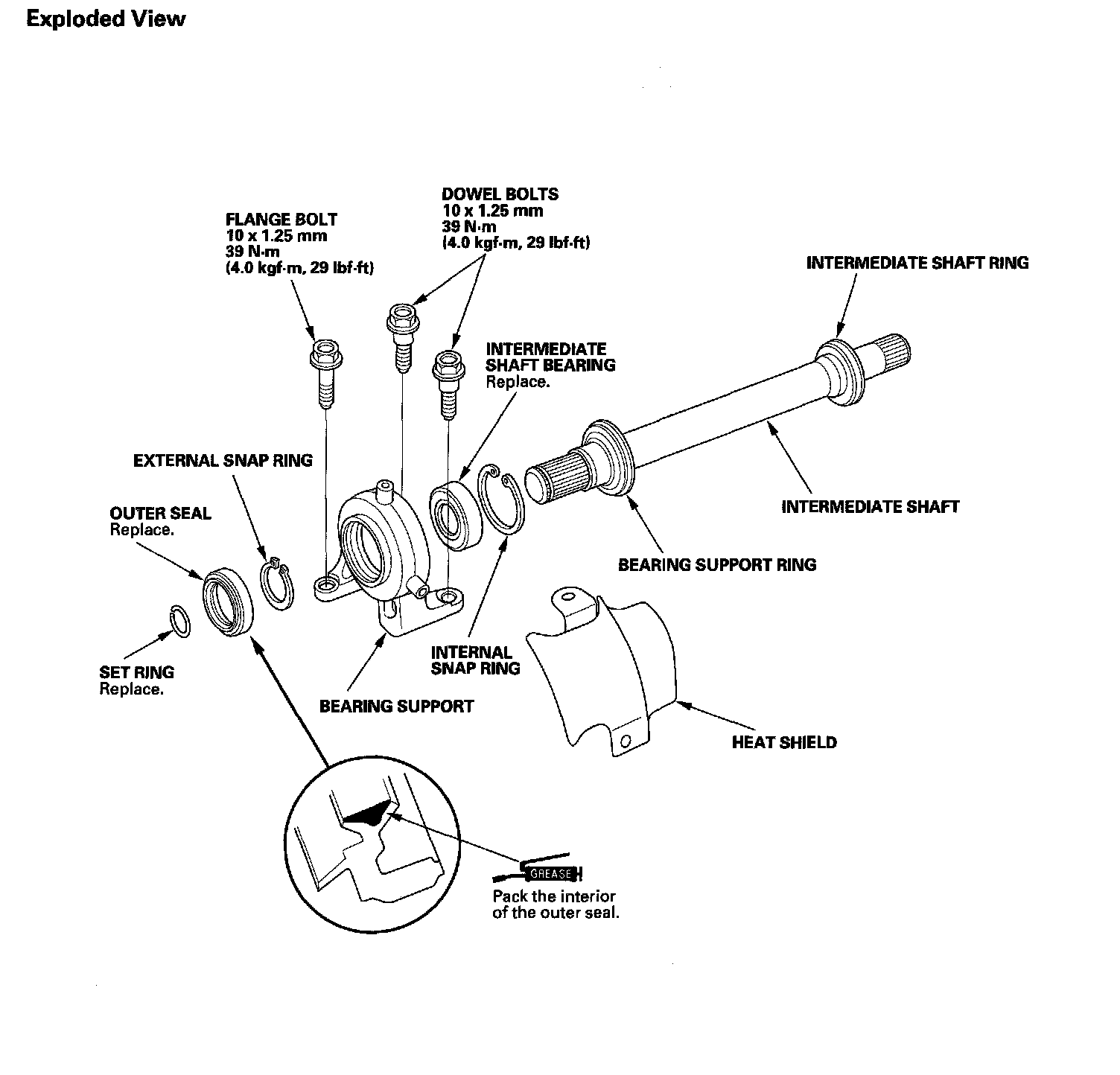

NOTE: Refer to the Exploded View as needed during this procedure.

1. Clean the disassembled parts with solvent, and dry them with compressed air. Do not wash the rubber parts with solvent.

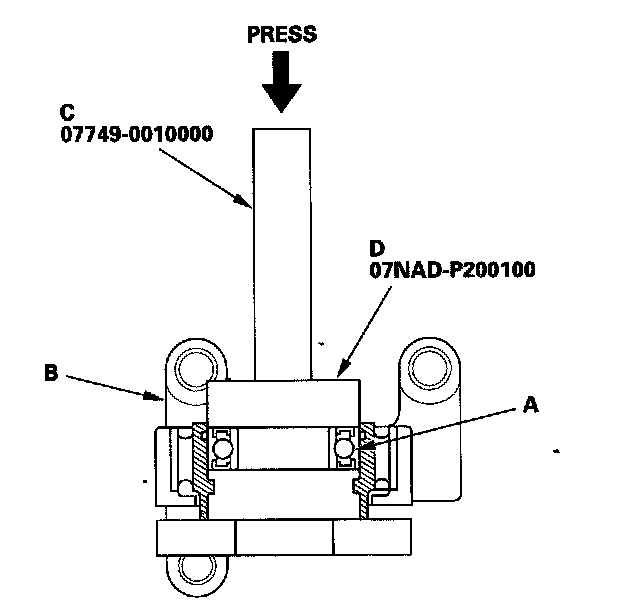

2. Press the intermediate shaft bearing (A) into the bearing support (B) using the driver (C), attachment (D), and a press.

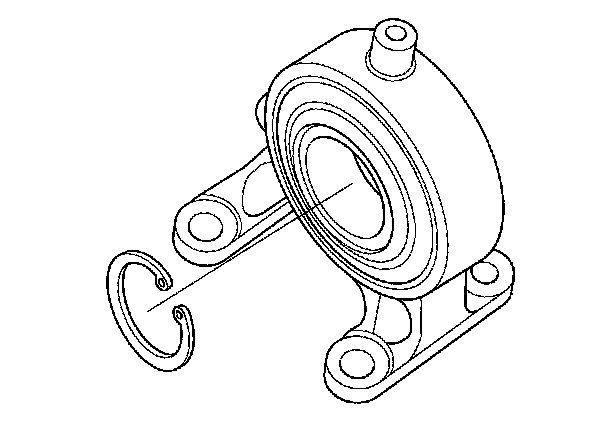

3. Install, then seat the internal snap ring in the groove of the bearing support.

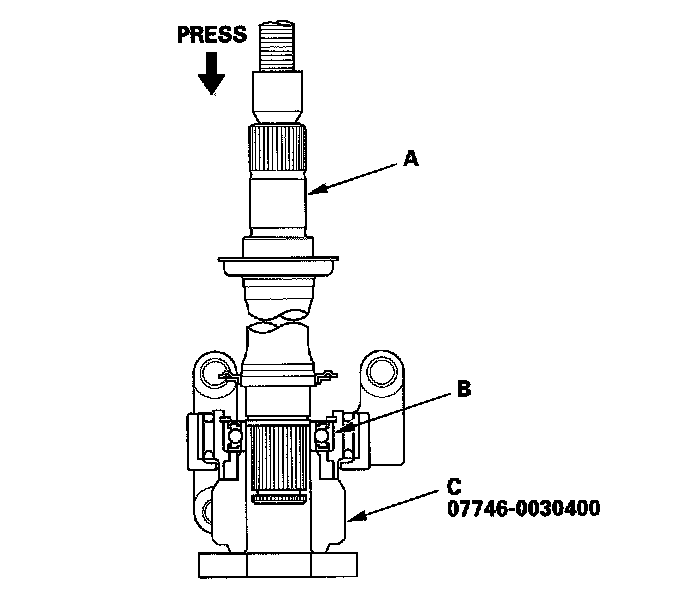

4. Press the intermediate shaft (A) into the shaft bearing (B) using the attachment (C), and a press.

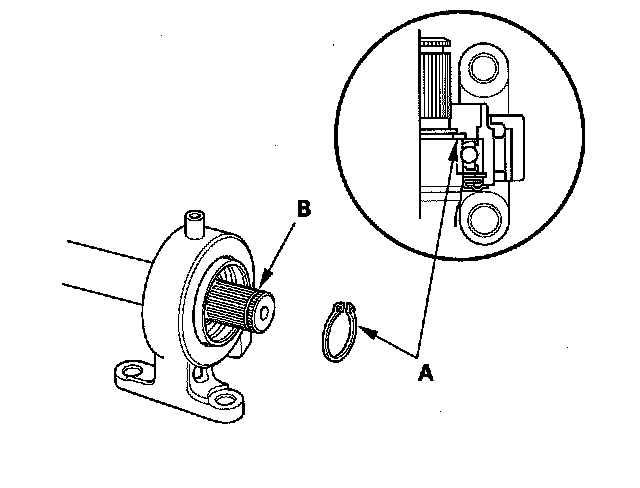

5. Install, then seat the external snap ring (A) in the groove of the intermediate shaft (B).

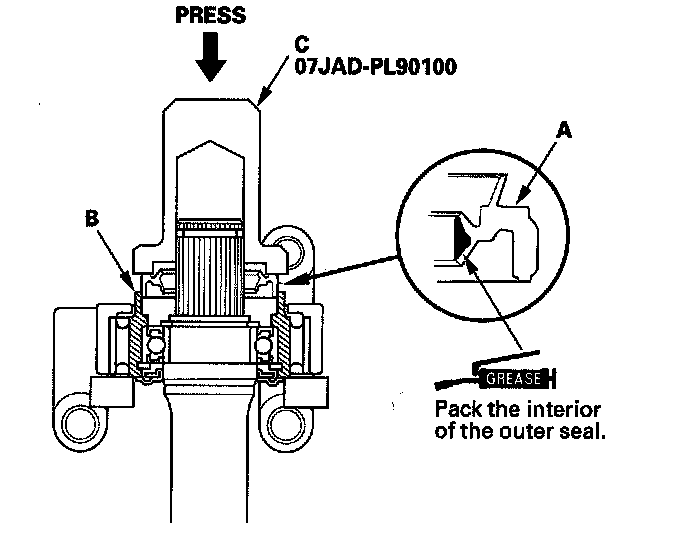

6. Install the outer seal (A) into the bearing support (B) using the oil seal driver (C) and a press.

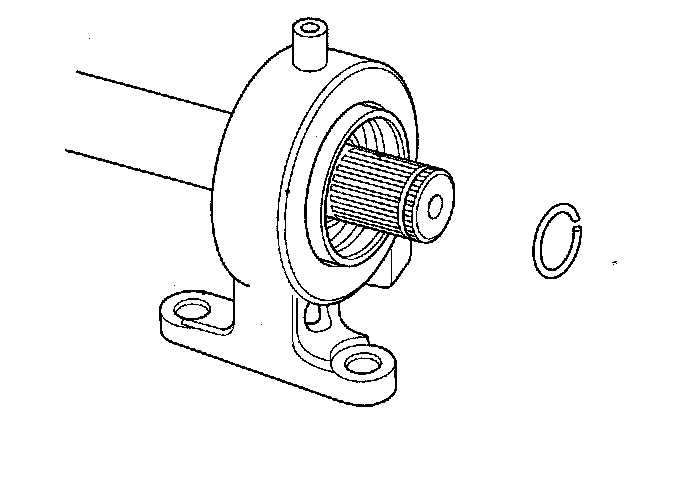

7. Install the set ring.

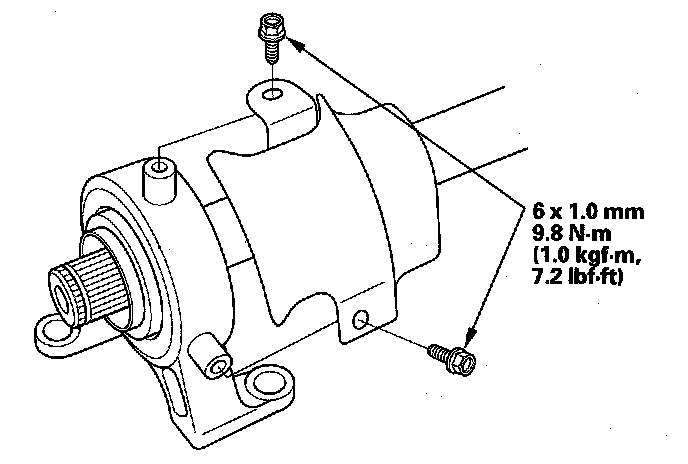

8. Install the heat shield.
