Shift Lever Knob Replacement
Shift Lever Knob ReplacementNOTE: Refer to the Shift Lever Disassembly and Reassembly as needed during the following procedures.
1. Remove the shift lever.

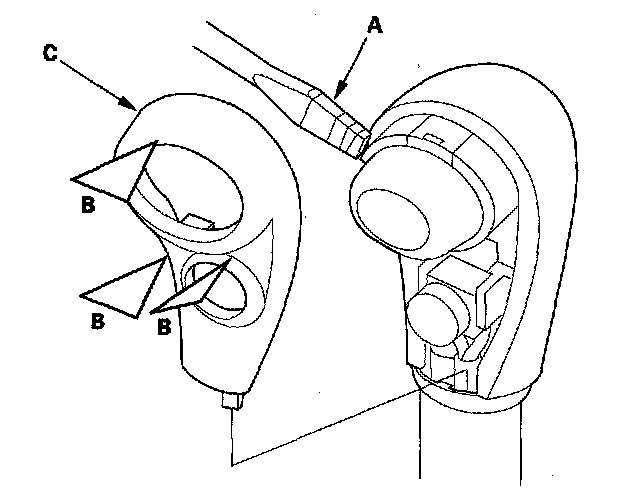

2. Wrap the end of a flat-tip screwdriver (A) with tape, pry the shift lever knob cover locks (B), and remove the shift lever knob cover (C).
3. Remove the screws (A), shift-lever button (B), and spring (C).
4. Remove the D3 switch (D) by expanding its locks (E) from the shift lever knob, and remove the shift lever knob (F).
5. Apply silicone grease to the top of the shift lever rod (A), to the shift lever button spring (B), and to the area of the shift lever button (C) connected with the shift lever rod.
6. Install the shift lever button spring and button in the shift lever knob (D), and install the shift lever knob over the shift lever.
7. Apply non-hardening thread lock sealant to the screw threads, and secure the shift lever knob with the screws (E).
8. Install the D3 switch (F) and shift lever knob cover (G) on the shift lever knob.
9. Install the shift lever.
