Shift Lever Knob Cover Replacement

Shift Lever Knob Cover Replacement

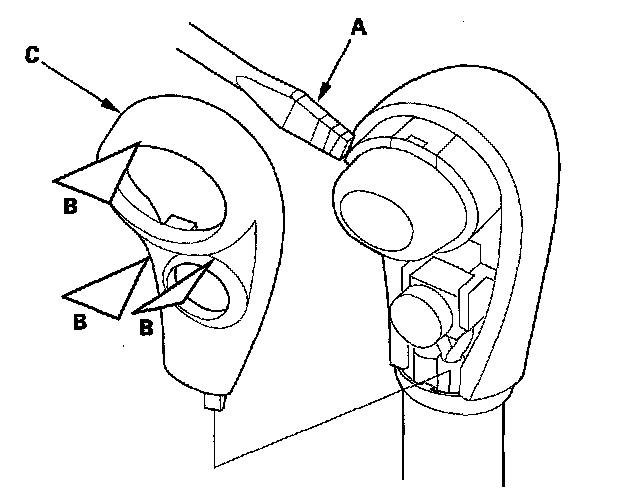

1. Wrap the end of a flat-tip screwdriver (A) with tape, pry the shift lever knob cover locks (B), and remove the shift lever knob cover (C).





2. Replace the shift lever knob cover, and install the new cover on the shift lever knob.
