Electrical Diagrams

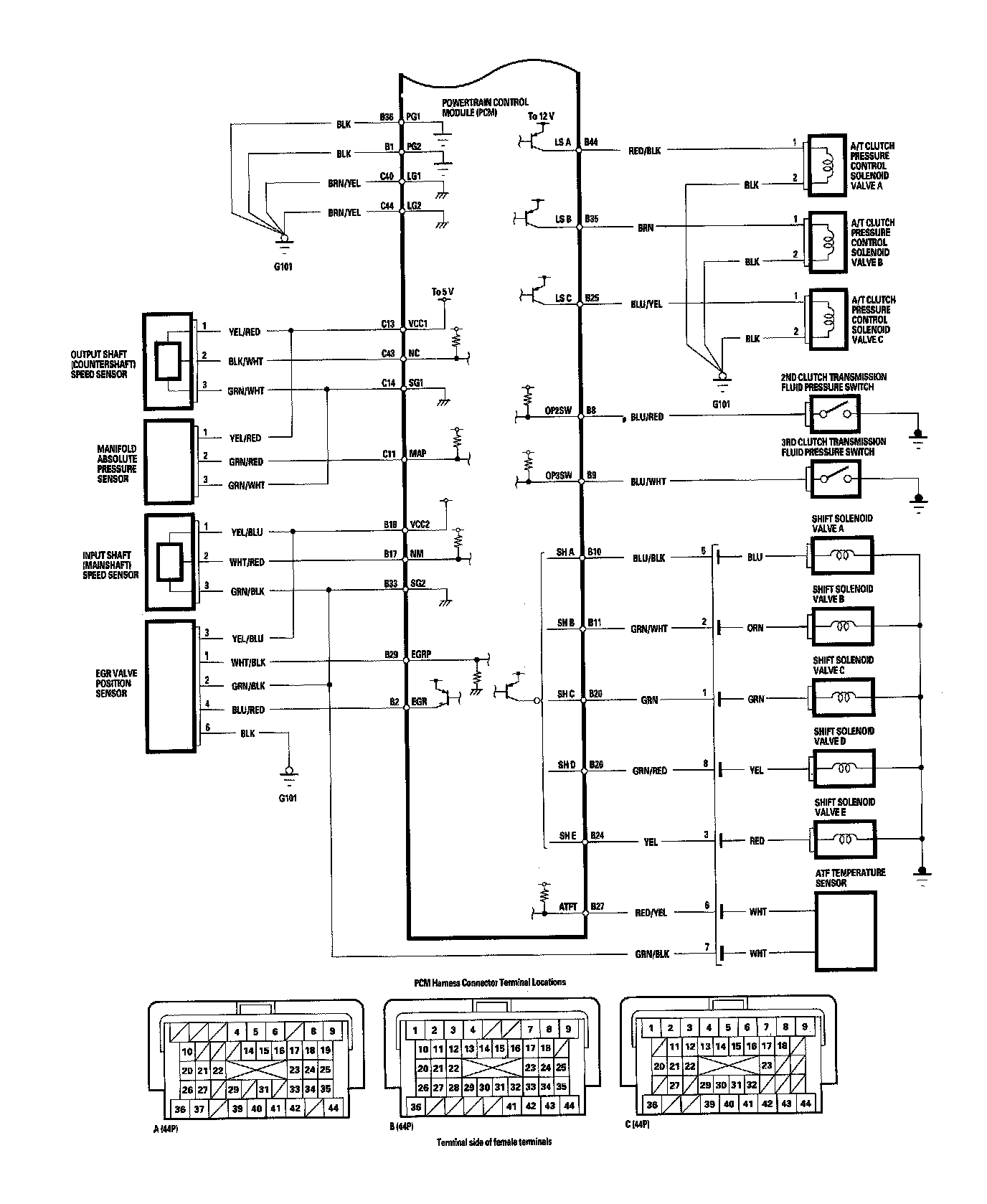

Automatic Transmission Circuit Diagram - PCM A/T Control System (part 1):
Automatic Transmission Circuit Diagram - PCM A/T Control System (part 2):
