Front Suspension

Stabilizer Link Removal/Installation
1. Raise the front of the vehicle, and support it with safety stands in the proper locations.
2. Remove the front wheel.

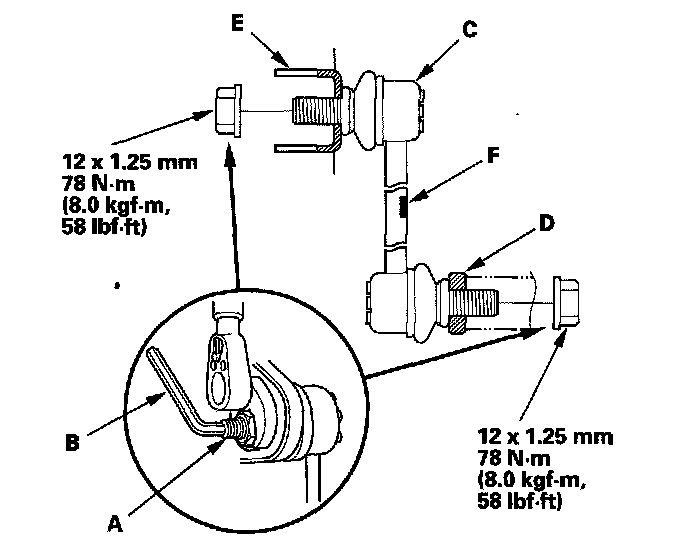

3. Remove the flange nuts while holding the respective joint pin (A) with a hex wrench (B), then remove the stabilizer link (C).





4. Install the stabilizer link on the stabilizer bar (D) and the damper (E) with the joint pins set at the center of their range of movement.

NOTE: The stabilizer link has a paint mark (F). Align the paint mark on the stabilizer link facing inward.

5. Install the flange nuts, and lightly tighten them.
6. Place a jack under the lower arm, and raise the suspension to load it with the vehicle's weight.
7. Tighten the flange nuts to the specified torque value while holding the respective joint pin with a hex wrench.
8. Clean the mating surface of the brake disc and the inside of the wheel, then install the rear wheel.
