Marker Lamp Bulb: Service and Repair

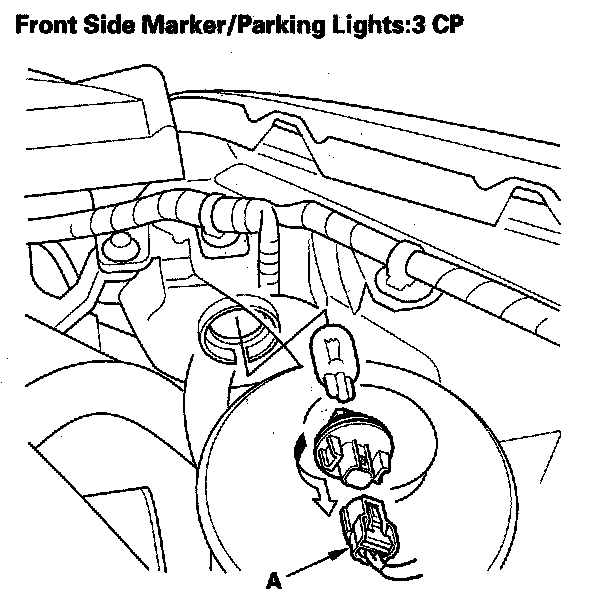

Front Side Marker/Parking Lights




1. Disconnect the 2P connector (A) from the front side marker/parking light.
2. Turn the bulb socket 45° counterclockwise to remove the bulb.
3. Install a new bulb in the reverse order of removal.
