Front Engine Compartment Wire Harness
Front Engine Compartment Wire Harness

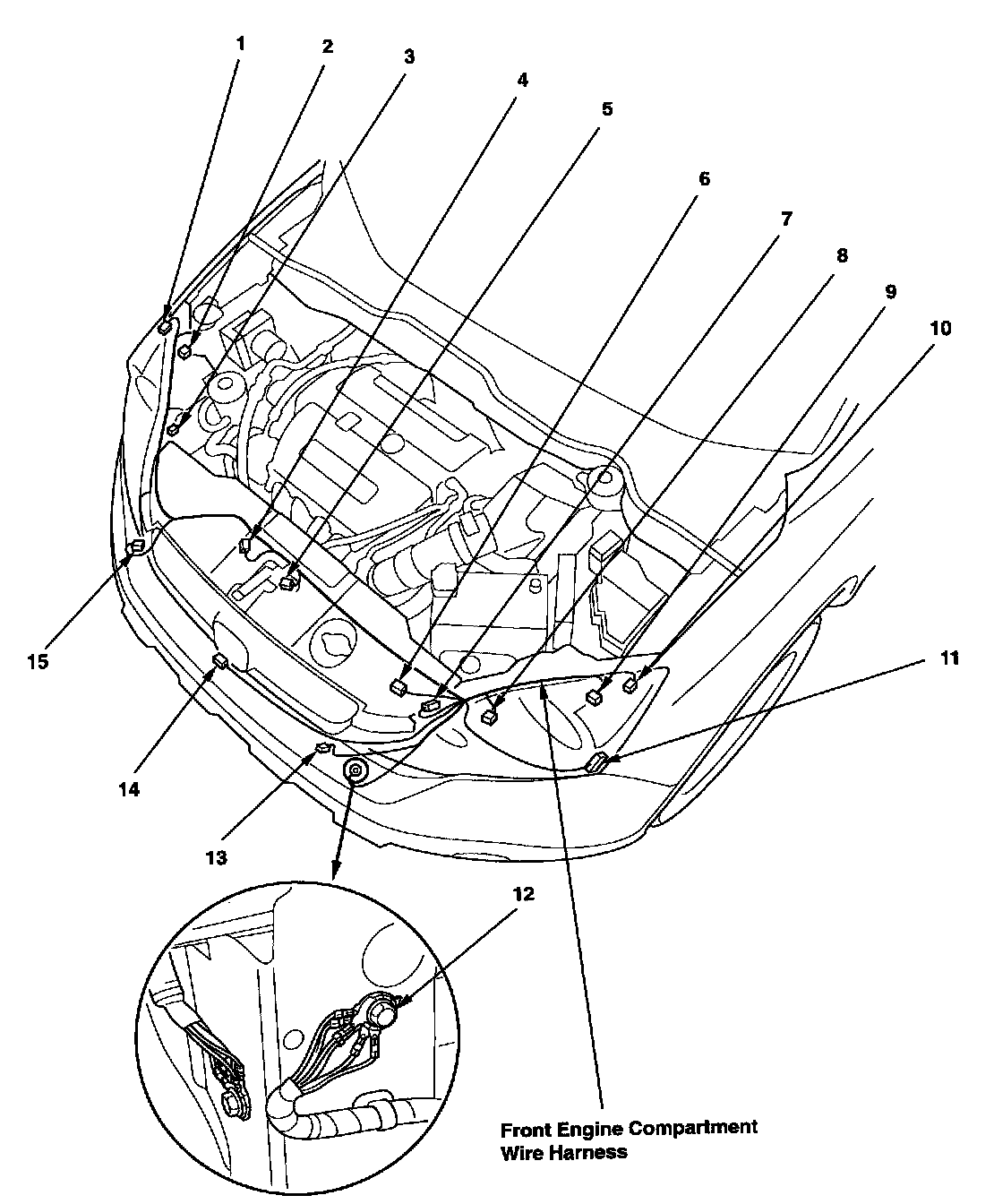

Harness Location View:

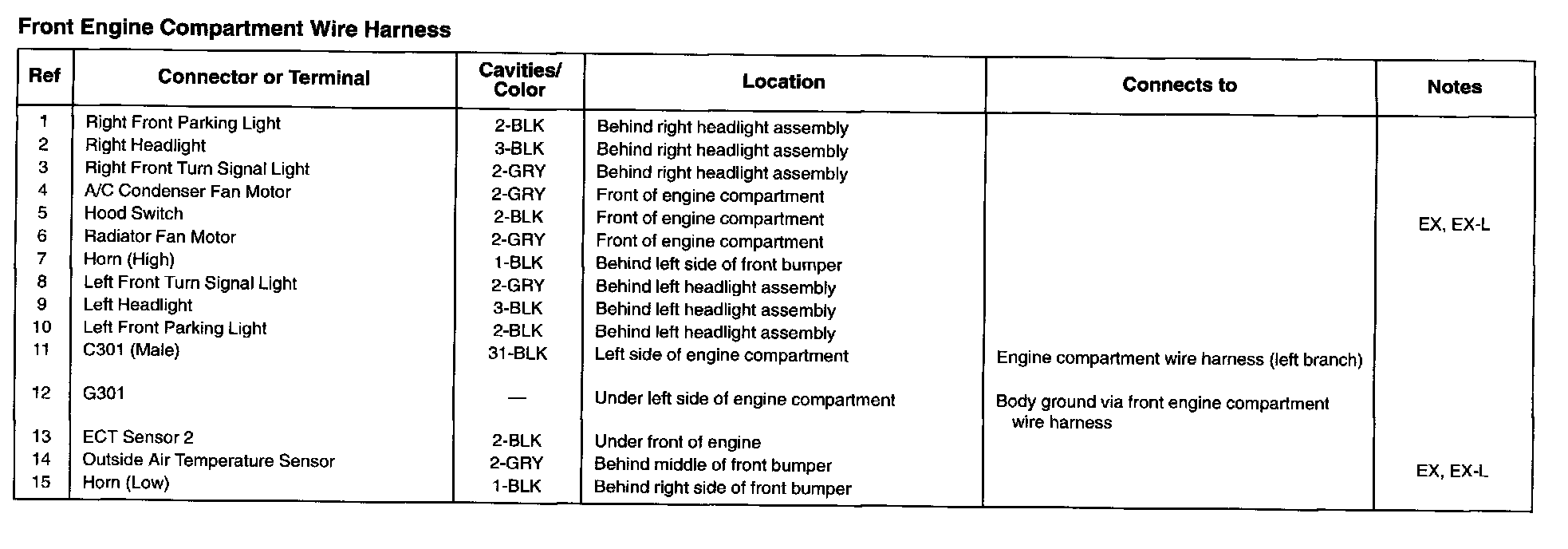

Front Engine Compartment Wire Harness:

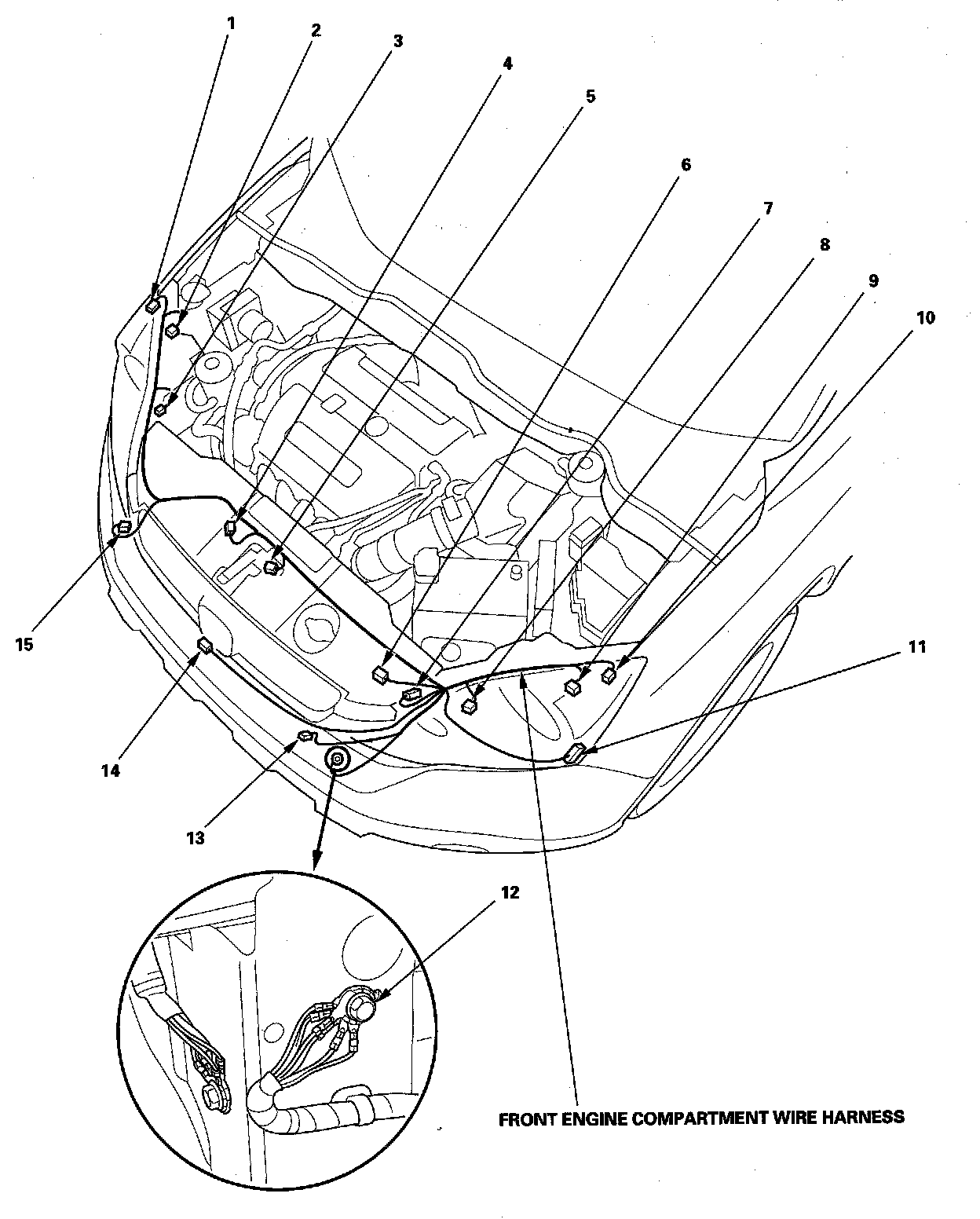

Harness Location View:
Front Engine Compartment Wire Harness:
