Wipers/Washers Circuit Diagram
Wipers/Washers Circuit Diagram

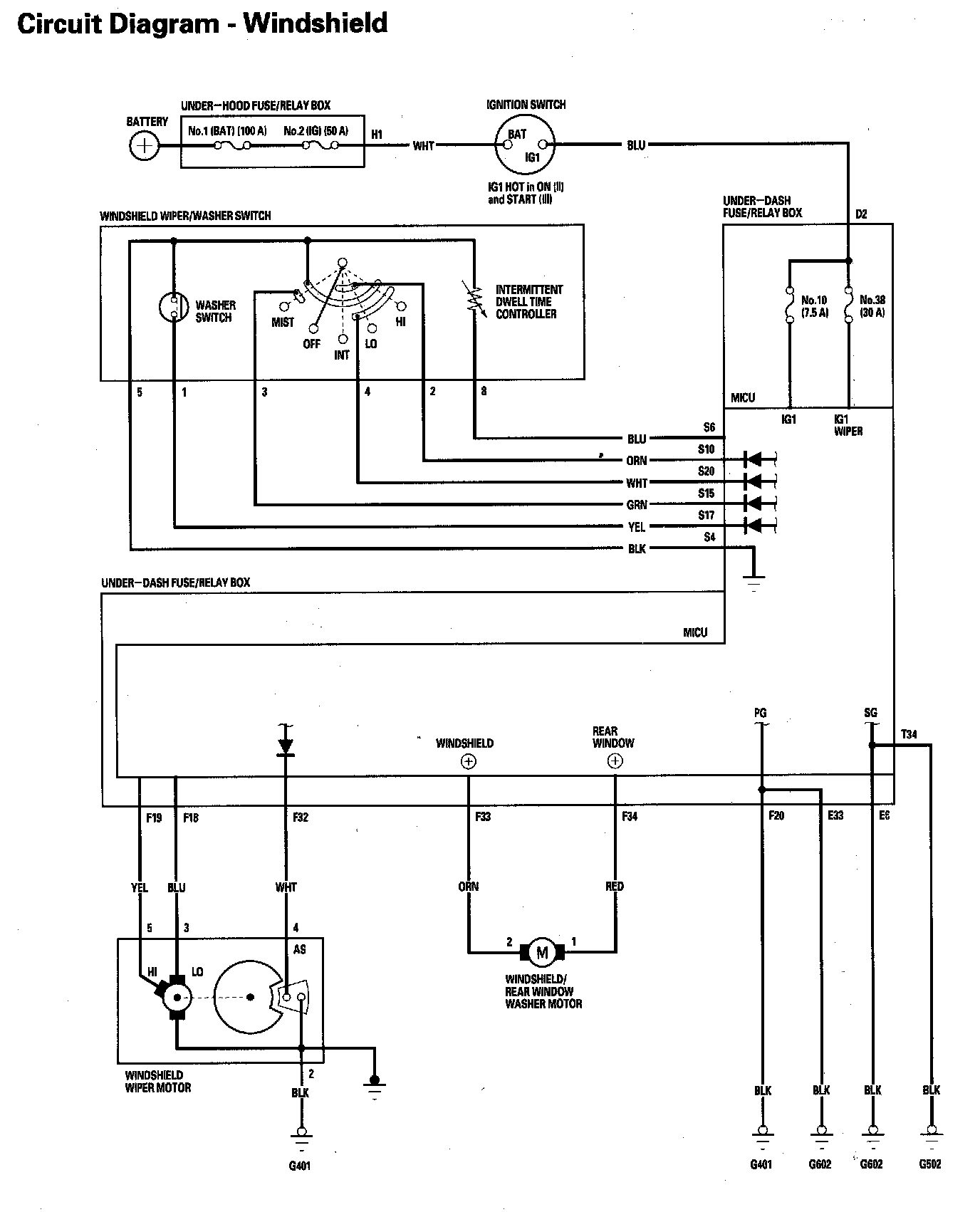

Wipers/washers Circuit Diagram Windshield Part 1:

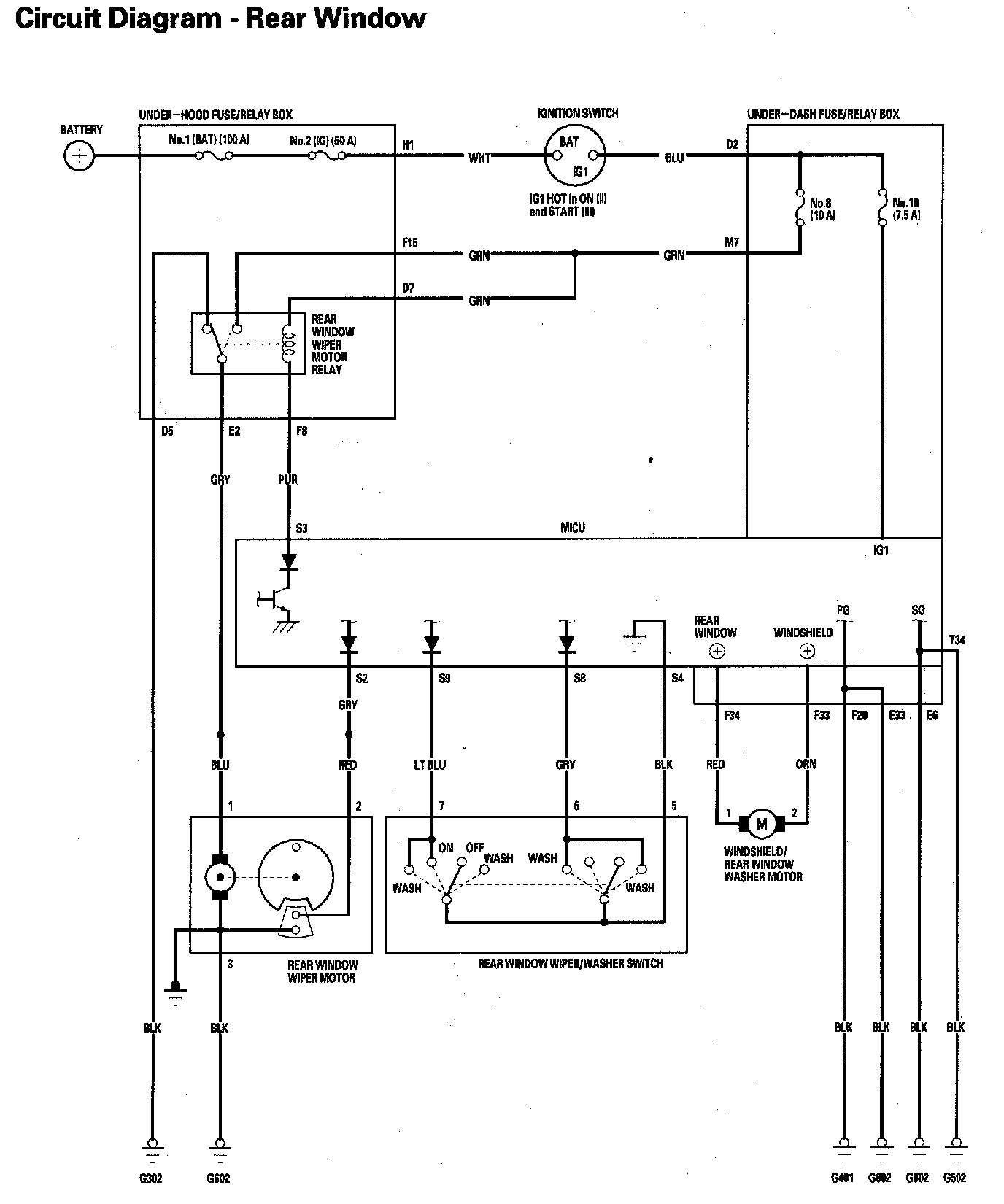

Wipers/washers Circuit Diagram Rear Window Part 2:
