Front Seat Recline Cover

Front Seat Recline Cover Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to tear the seams of damage the seat covers.
- Put on gloves to protect your hands.

1. Remove the front seat.
2. Passenger's seat: Remove these items:
- Woofer (for some models)
- Front seat belt buckle

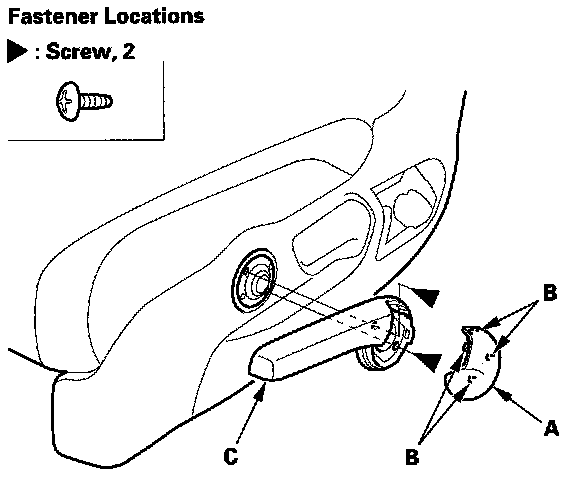

3. Pull back the cap (A) to release the hooks (B), and remove the screws, then remove the height adjuster handle (C).

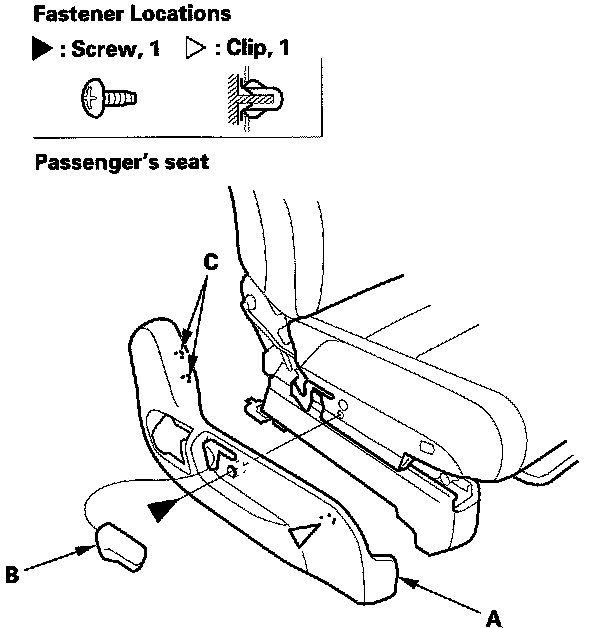

4. Remove the recline outer cover (A).
1. Remove the recline knob (B), and remove the screw.
2. Fold back the seat to fully.
3. Detach the clip by pulling the outer cover back by hand.
4. Using a trim tool, and release the hooks (C) along the upper edge of the outer cover.
5. Gently pull out the outer cover, and remove it to the back.




5. Remove the recline inner cover (A).
1. Carefully pry up the cap (B), and remove the screw.
2. Fold back the seat to fully.
3. Detach the clips by pulling the inner cover back by hand.
4. Using a trim tool, release the hooks (C) along the upper edge of the inner cover.
5. Gently pull out the inner cover, and remove it to the back.

6. Install the recline covers in the reverse order of removal.
