Trim Removal/Installation - Rear Side Area

Trim Removal/Installation - Rear Side Area

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.

1. Remove these items:
- Tailgate weatherstrip, as needed
- Rear door opening seal, as needed
- Rear door side sill
- Rear trim panel
- Cargo area floor

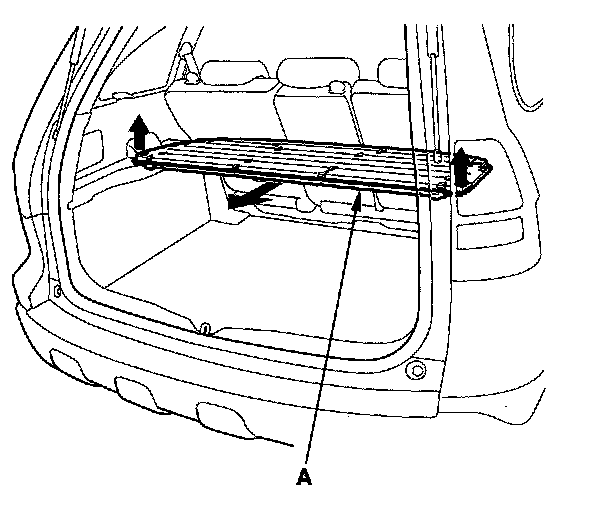

2. Remove the dual deck cargo shelf (A).




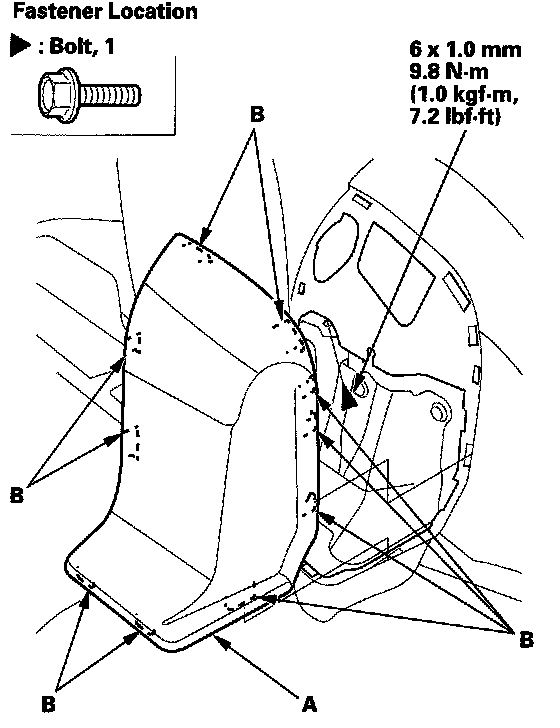

3. Using the appropriate trim tool, pry out on the upper portion of the lid (A) to release the hooks (B), then remove it. From the opening hole of the lid, remove the bolt.

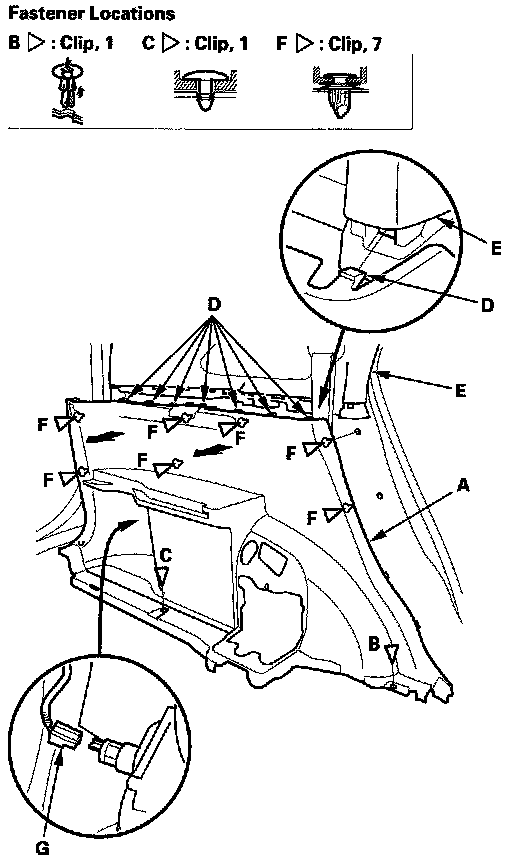

4. Remove the cargo area side trim panel (A).
1. Remove the clips (B, C) from the lower portion of the trim panel.
2. Pull the upper edge of the trim panel back to release the upper hooks (D) from the quarter pillar glass trim (E).
3. Pull out the trim panel back by hand to detach the clips (F) to remove it.
4. Driver's side: Disconnect the cargo area accessory power socket connector (G).

5. Install the panel in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Make sure the cargo area accessory power socket connector is plugged in properly.
- When installing the panel, make sure there are no pinches in the seat belt.
- Push the clips into place securely.
- Before installing the seat belt anchor bolt, make sure there are no twists or kinks in the seat belt.
