Instrument Upper Visor

Instrument Upper Visor Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

1. Release the tilt/telescopic lock lever, tilt the steering wheel fully down, and pull it full out.

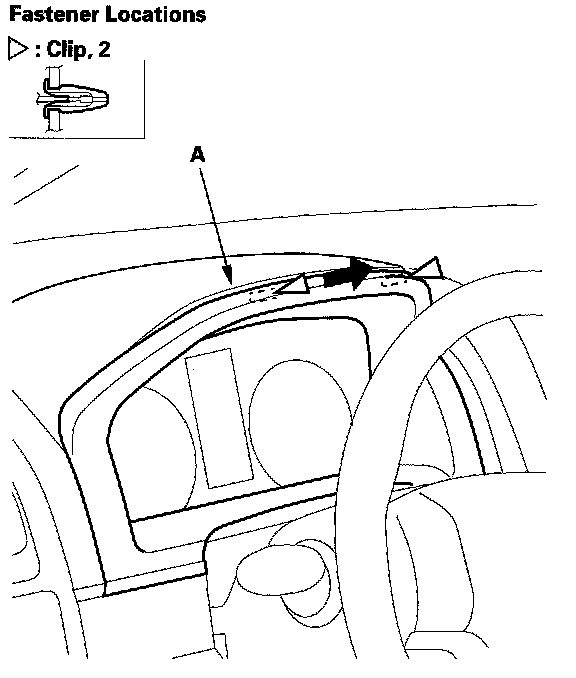

2. Gently pull out on the upper edge of the instrument upper visor (A) to detach the upper clips.




3. Detach the lower clips, and release the hooks (A) by pulling the instrument upper visor (B) back.
4. Install the trim in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
