License Plate Frame: Service and Repair
Rear License Trim ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.
NOTE:
- Put on gloves to protect your hands.
- Take care not to bend or scratch the trim and panels.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Remove the tailgate lower trim panel.

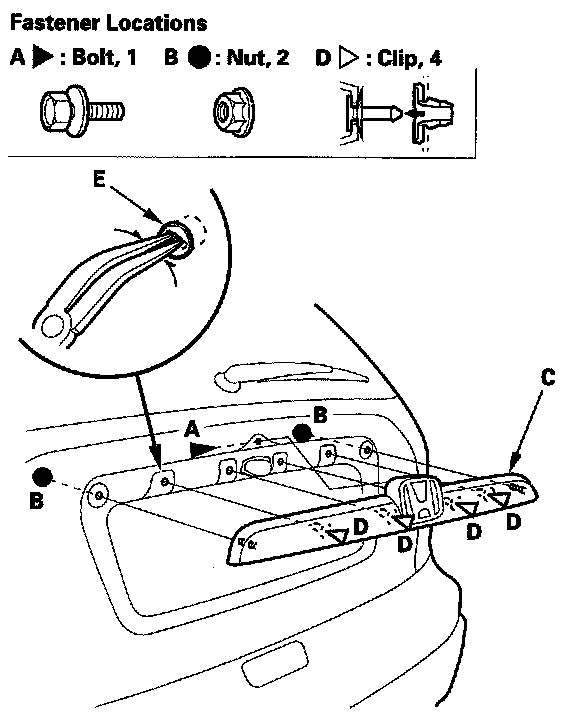

2. From inside the tailgate, remove the bolt (A) and nuts (B) securing the rear license trim (C).
3. Pull out the rear license trim to release the clips (D), then remove the rear license trim from the tailgate.
4. Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
5. Remove the grommets (E) from the tailgate, then insert the grommets into the clips on the rear license trim.
6. Hold the trim up, and fit all the clips into the holes in the tailgate, then push on the trim until the clips snap into place.
7. Reinstall the bolts and nuts, then reinstall the rear license trim.
