Overhaul

Rear Bumper Disassembly/Reassembly

NOTE: Take care not to scratch the bumper faces.

1. Remove the rear bumper.

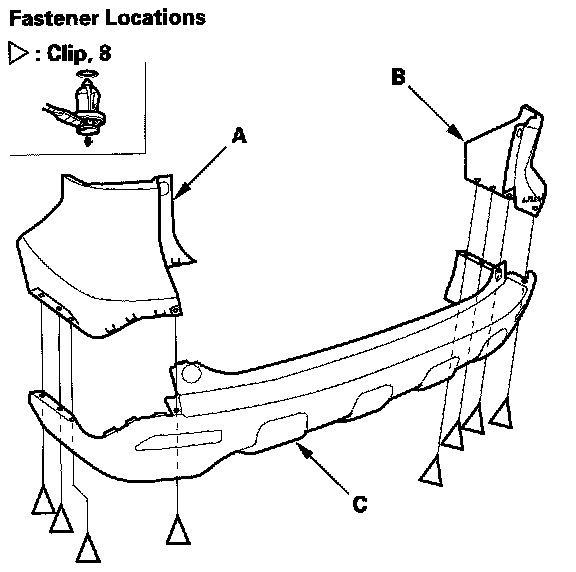

2. Remove the clips, then separate the left rear bumper face (A), right rear bumper face (B) and lower rear bumper face (C).

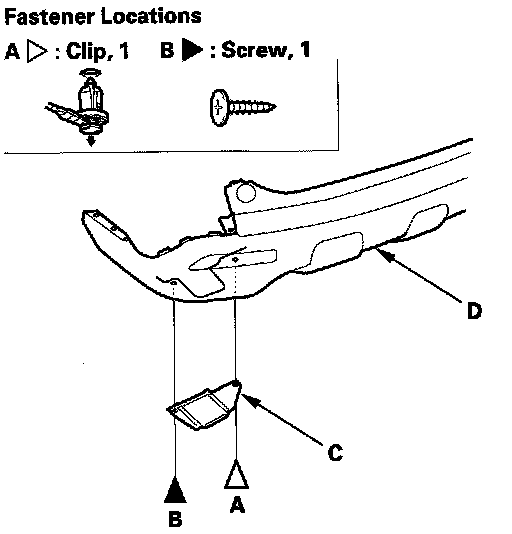

3. Remove the clip (A) and screw (B), then remove the rear bumper under trim (C) from the lower rear bumper face (D).
4. Reassemble the bumper faces in the reverse order of disassembly, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips and hooks into place securely.
