Audio Remote Switch Test
Audio Remote Switch Test1. Remove the driver's airbag assembly.

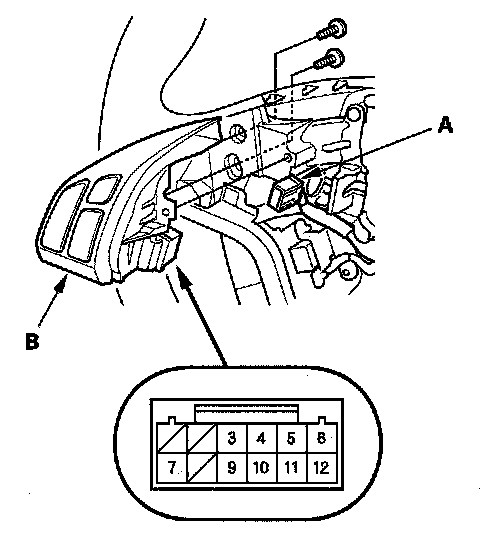

2. Remove the 12P connector (A) from the audio remote switch (B).

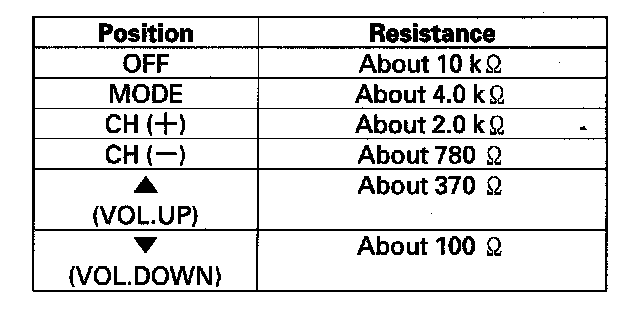

3. Measure the resistance between the No. 3 and No. 7 terminals in each switch position according to the table.
4. If the resistance is not as specified, replace the audio remote switch.

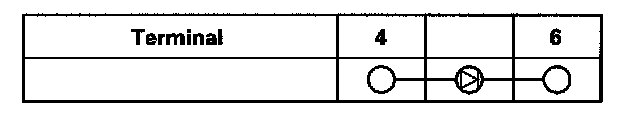

5. Use a diode tester between the terminals in each switch position according to the table.
6. If the diode test is bad, replace the switch.
