CD Changer: Service and Repair

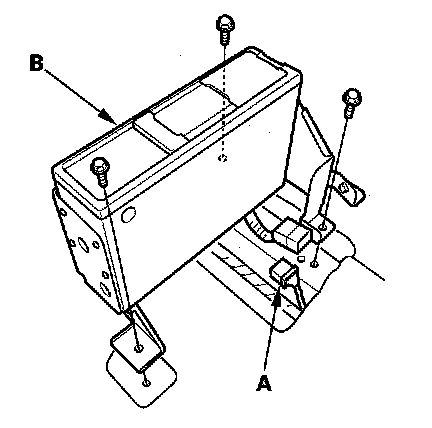

Audio Disc Changer Removal/Installation

1. Remove the center console.




2. Disconnect the connector (A) from the audio disc changer (B).
3. Remove the bolts and the audio disc changer.
4. Install the audio disc changer in the reverse order of removal.
