Amplifier: Service and Repair

Stereo Amplifier Removal/Installation

1. Remove the front console cover.
2. Remove the center lower cover.

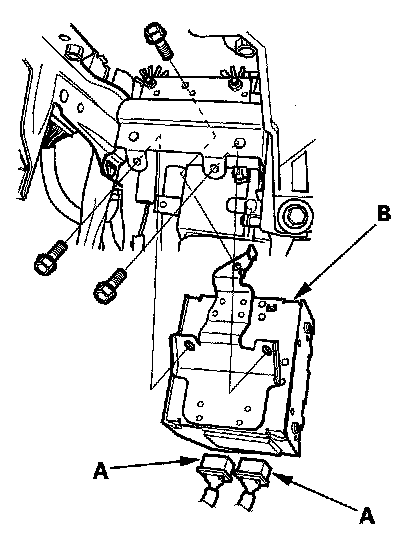

3. Disconnect the connectors (A) from the stereo amplifier (B).
4. Remove the bolts and the stereo amplifier.
5. Install the stereo amplifier in the reverse order of removal.
