Component Tests and General Diagnostics

Voice Control Switch Test




1. Remove the voice control switch.

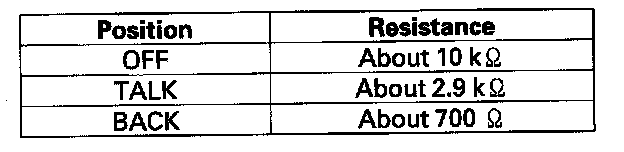

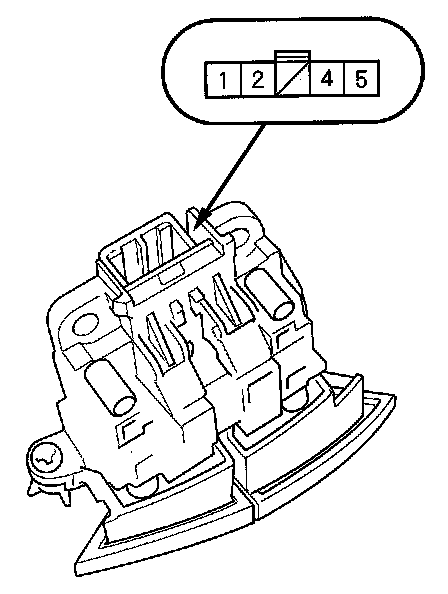

2. Measure the resistance between the No. 2 and No. 3 terminals in each switch position according to the table.
3. If the resistance is not as specified, replace the voice control switch.

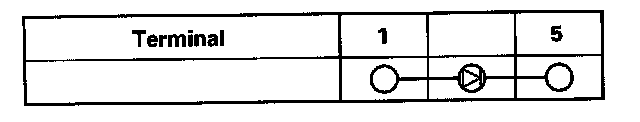

4. Use a diode tester between the terminals in each switch position according to the table.
5. If the diode test is bad, replace the switch.
