Home >> Honda Truck >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

Throttle Position Sensor: Diagrams

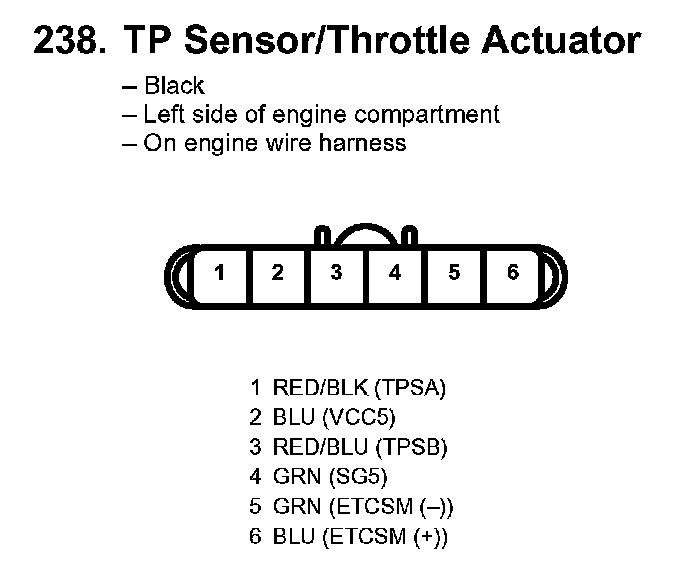

238. TP Sensor/Throttle Actuator:
