Home
>>
Honda Truck
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Monitoring System
>>
Tire Pressure Module
Tire Pressure Module

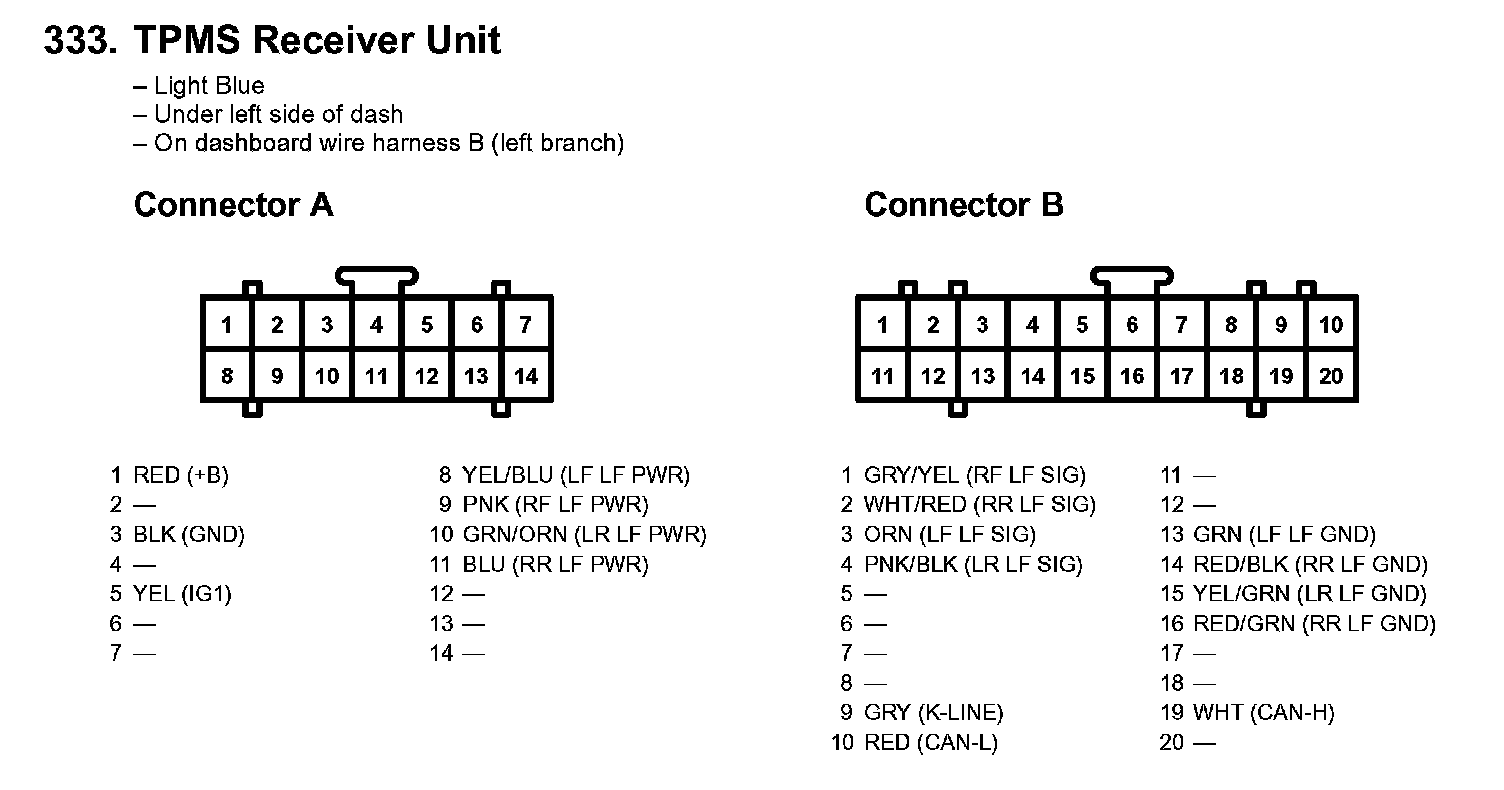

333. TPMS Receiver Unit:
