Honda Truck
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
Seat Occupant Sensor

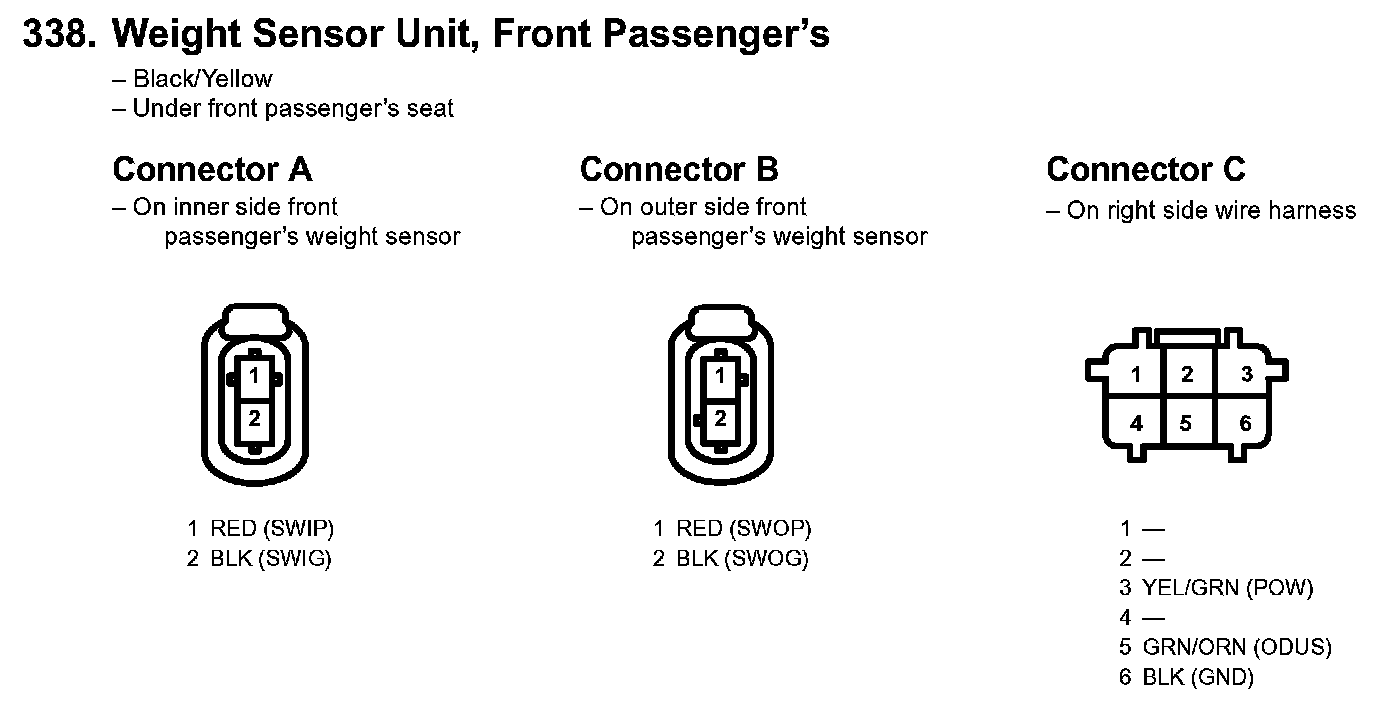

338. Weight Sensor Unit, Front Passenger's:
