Home
>>
Honda Truck
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
Manifold Pressure/Vacuum Sensor

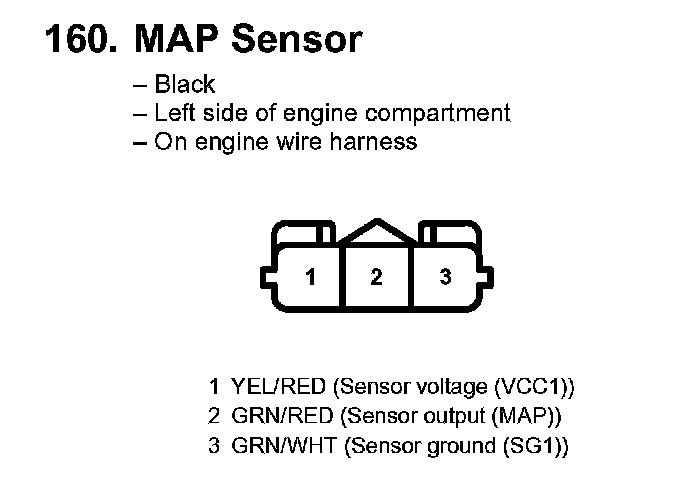

160. MAP Sensor:
