Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda Truck
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
Camshaft Position Sensor

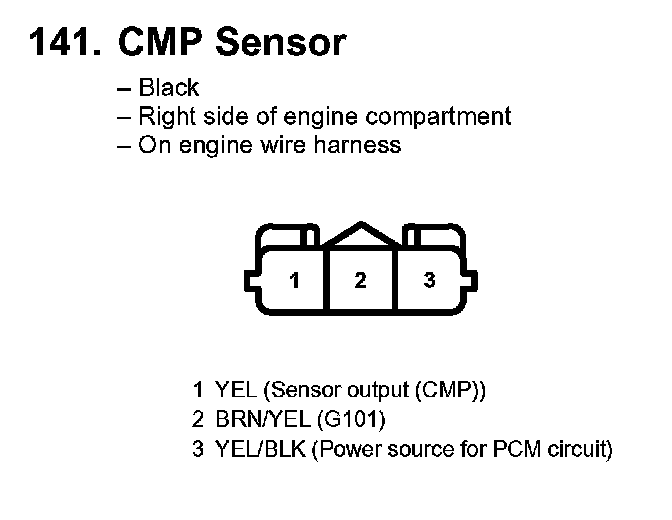

141. CMP Sensor:

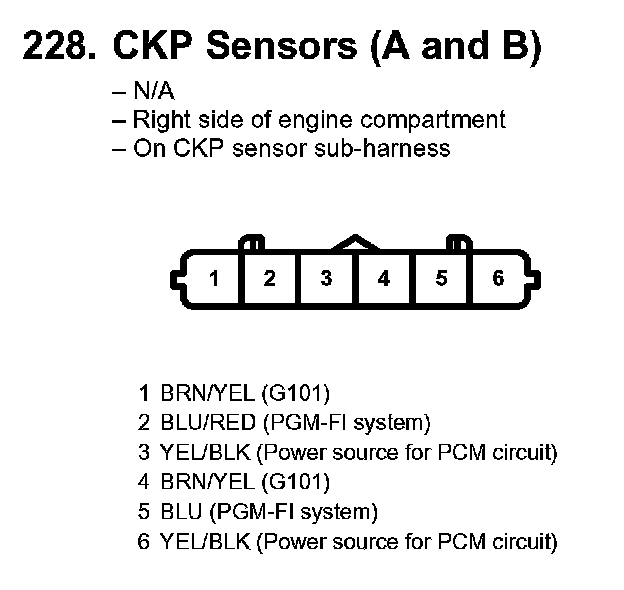

228. CKP Sensors (A And B):
