Home >> Honda Truck >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 301-325 >> 301

Views 301-325: 301

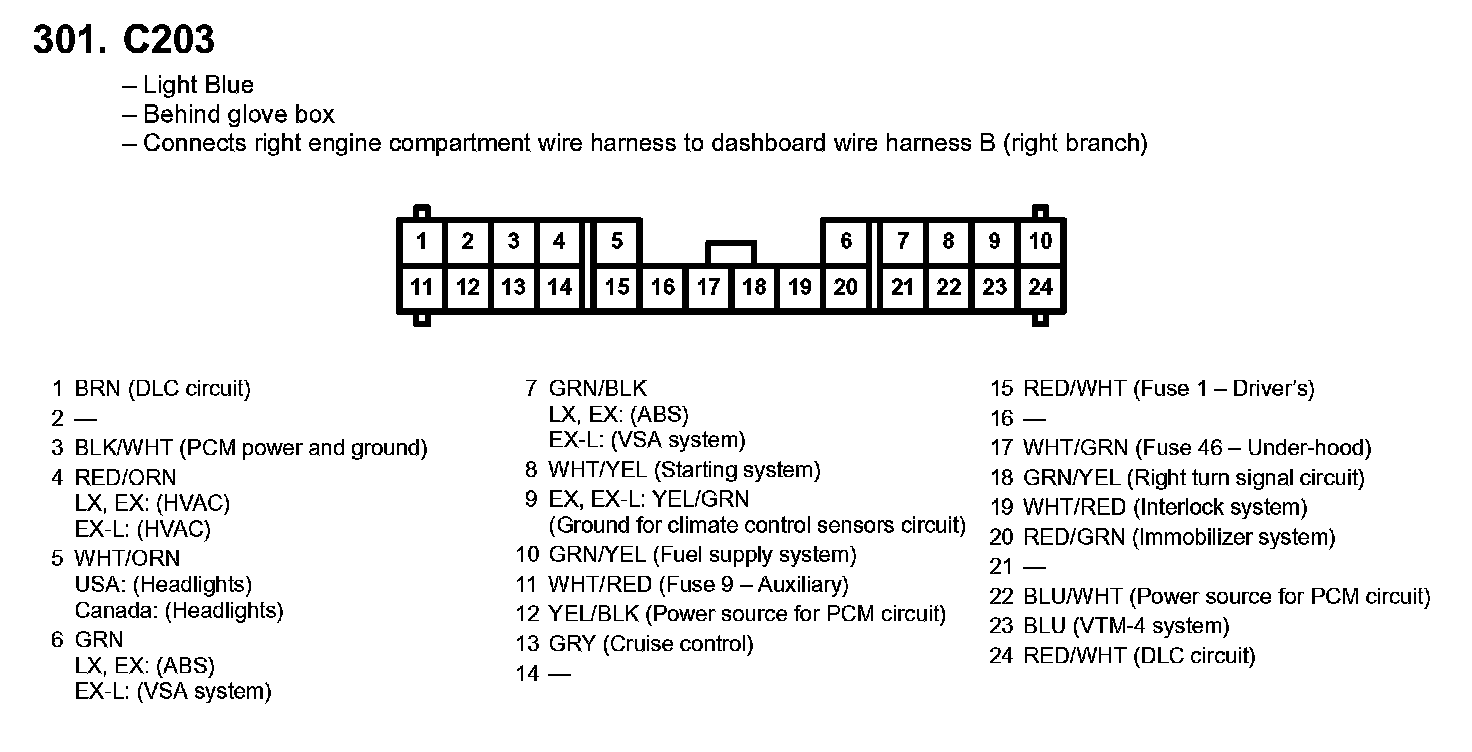

301. C203:
