Antitheft and Alarm Systems
>>
Lock Cylinder Switch
Lock Cylinder Switch

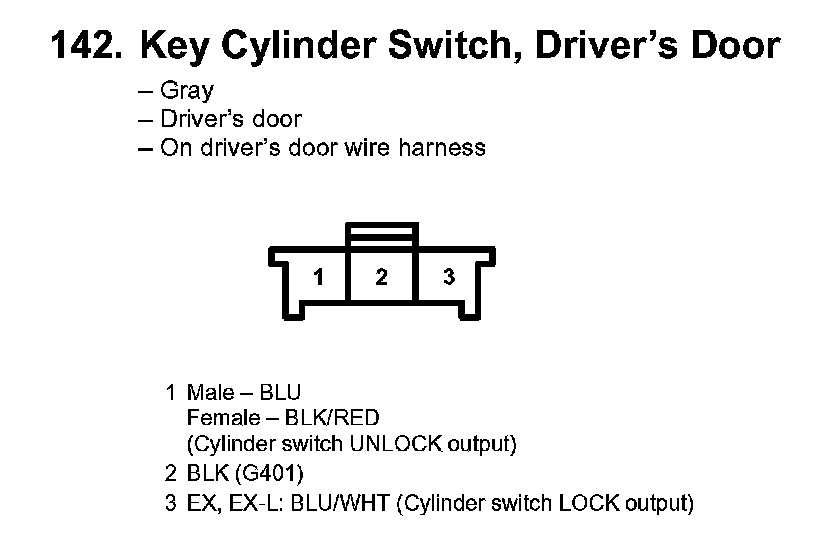

142. Key Cylinder Switch, Driver's Door:
