Home >> Honda Truck >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> ABS Modulator-Control Unit (LX, EX)

ABS Modulator-Control Unit (LX, EX)

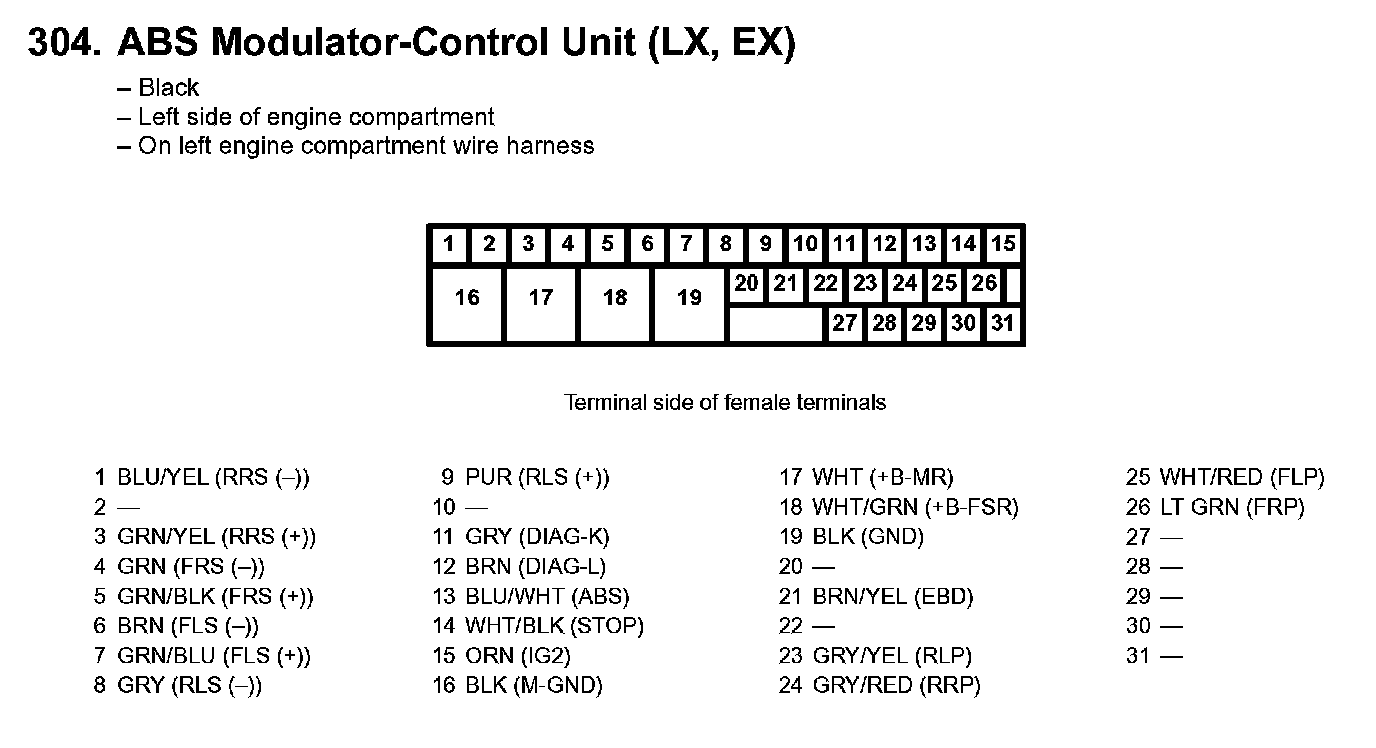

304. ABS Modulator-Control Unit (LX, EX):
