Intermediate Shaft Removal

Intermediate Shaft Removal
1. Drain the transmission fluid.
2. Remove the right driveshaft.

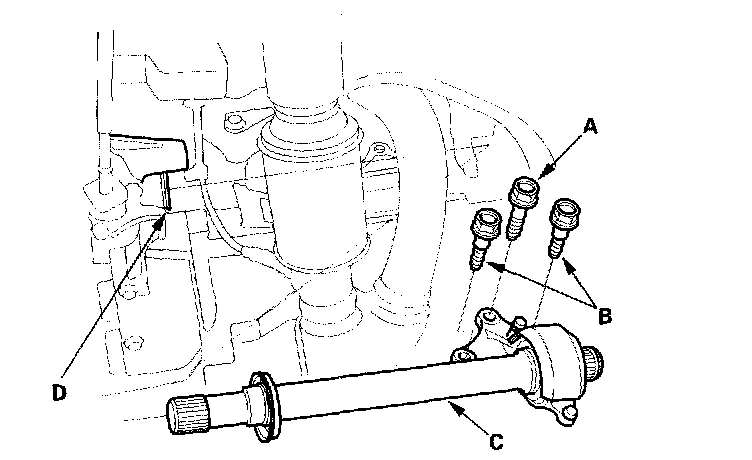

3. Remove the flange bolt (A) and the two dowel bolts (B).
4. Remove the intermediate shaft (C) from the differential. Hold the intermediate shaft horizontal until it is clear of the differential to prevent damage to the differential oil seal (D).
