Front Driveshafts Removal

Front Driveshafts Removal

Special Tools Required
Ball joint remover, 32 mm 07MAC-SL00100

1. Loosen the wheel nuts slightly.
2. Raise the front of the vehicle, and support it with safety stands in the proper locations.





3. Remove the wheel nuts and front wheels.

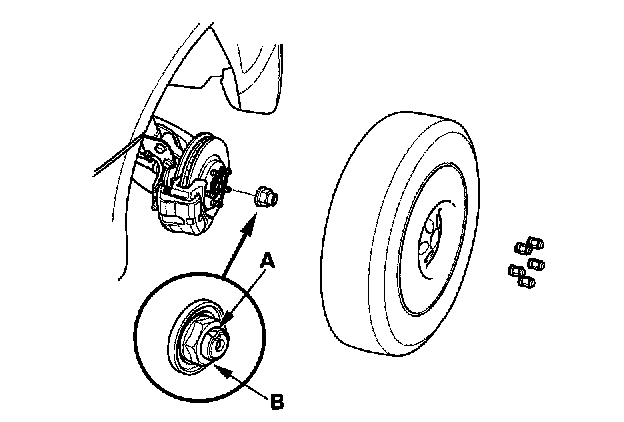

4. Lift up the locking tab (A) on the spindle nut (B), then remove and discard the nut.
5. If the left driveshaft is removed, drain the transmission fluid. It is not necessary to drain the transmission fluid when the right driveshaft is removed.

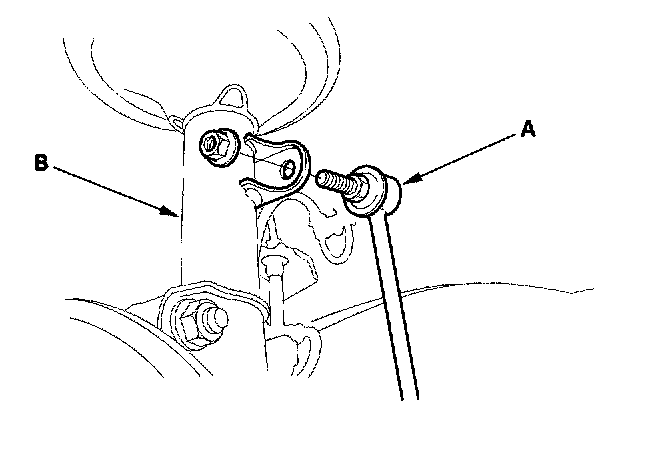

6. Remove the stabilizer link (A) from the damper (B).

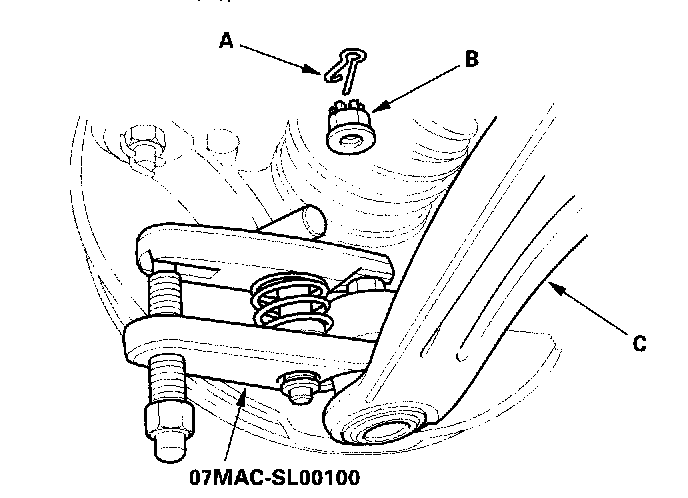

7. Remove the clip (A) from the lower arm ball joint castle nut (B), and remove the nut.
8. Separate the ball joint from the lower arm (C) with the special tool.

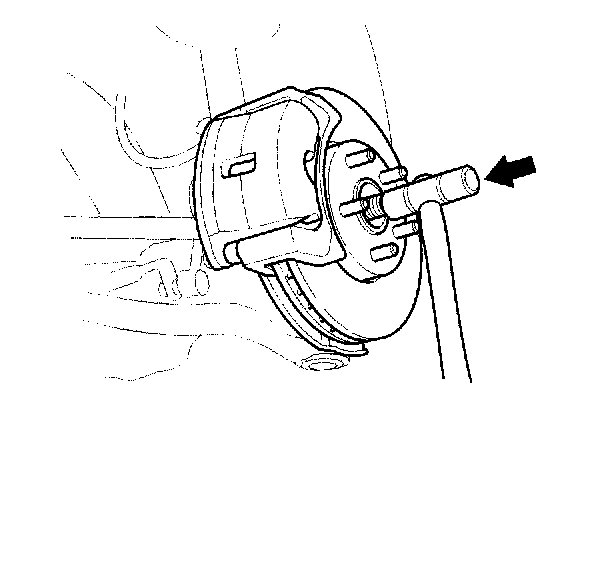

9. Pull the knuckle outward, and remove the driveshaft outboard joint from the front wheel hub using a plastic hammer.

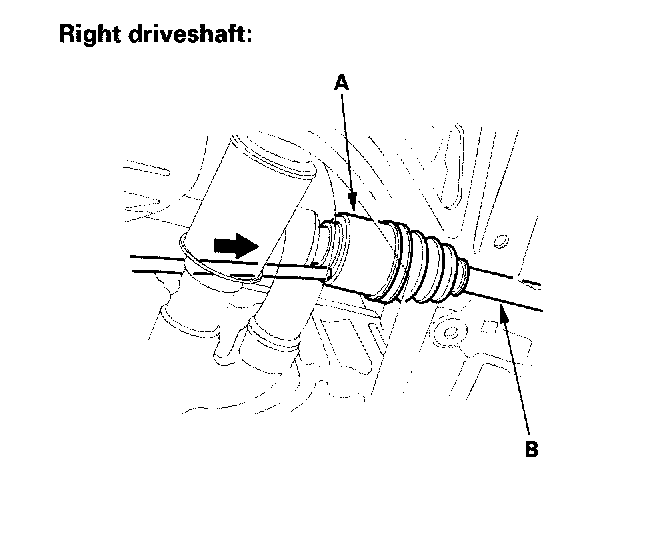

10. Pry (left driveshaft)/tap (right driveshaft) the inboard joint (A), and remove the driveshaft from the differential case or bearing support as an assembly. Do not pull on the driveshaft (B); the inboard joint may come apart. Draw the driveshaft straight out to avoid damaging the differential oil seal or the intermediate shaft outer seal.
