Electrical Diagrams

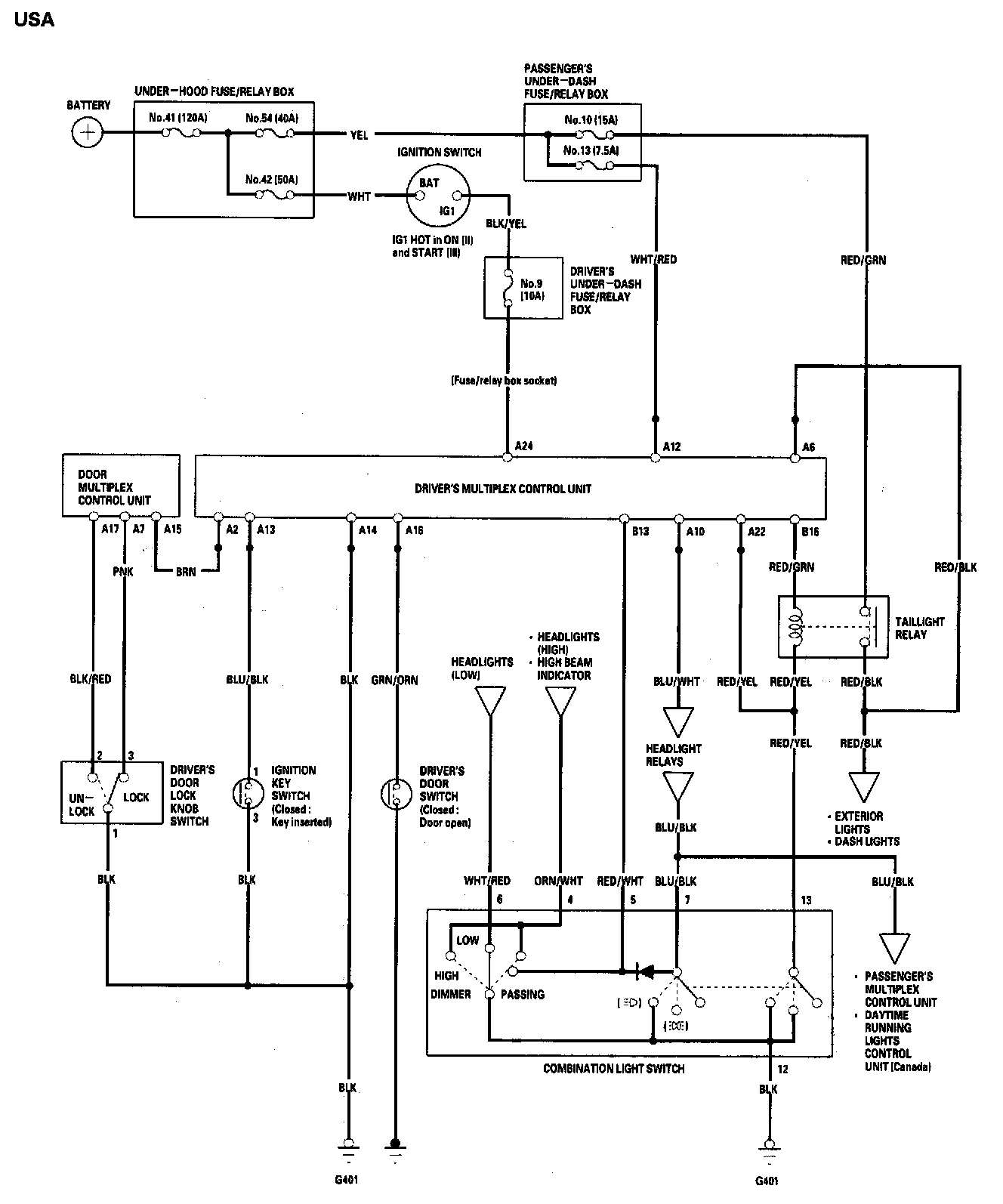

Exterior Lights - Circuit Diagram (Auto-off Headlights (USA)):

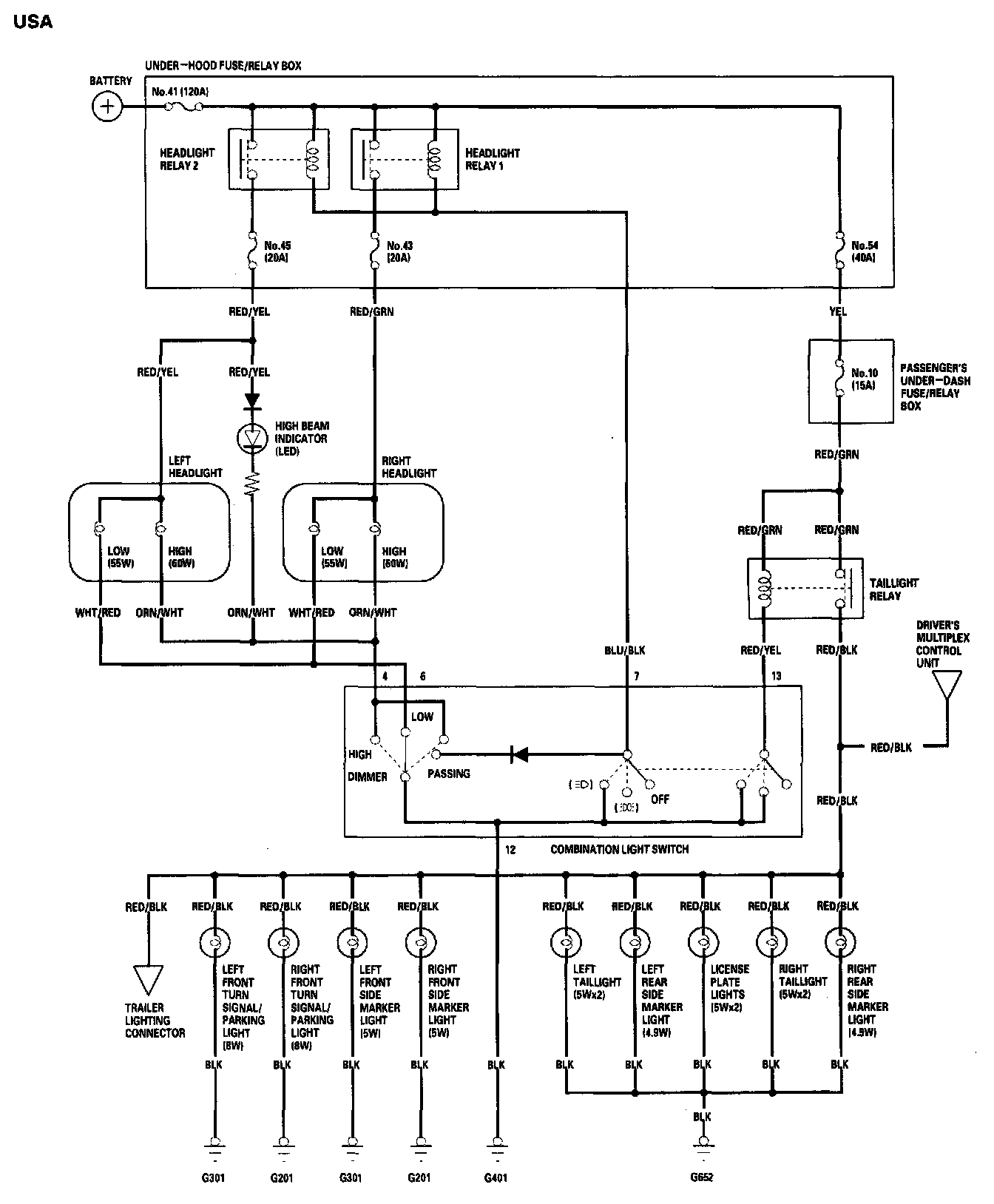

Exterior Lights - Circuit Diagram (With Automatic Lights-off Feature (USA)):

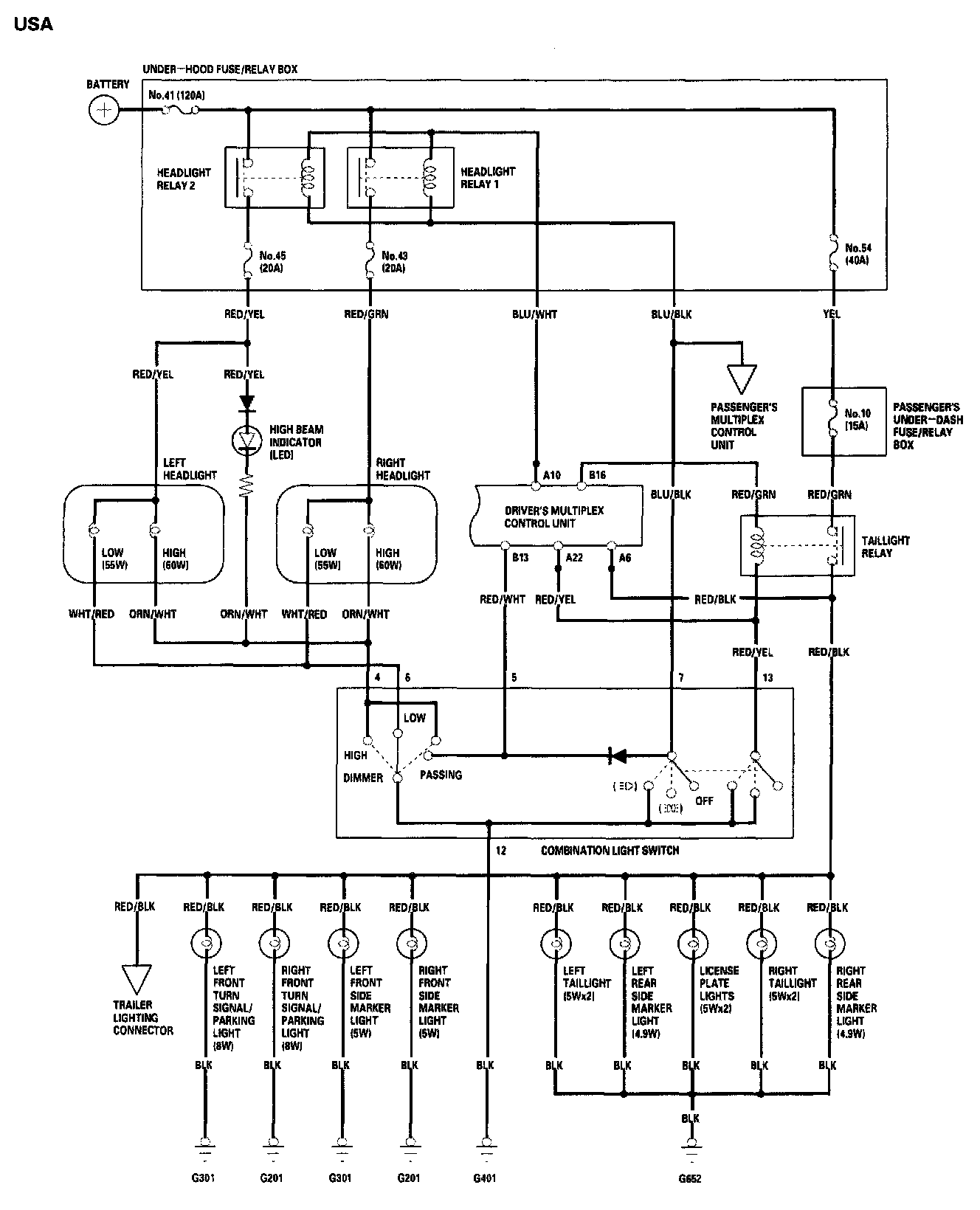

Exterior Lights - Circuit Diagram (With Automatic Lights-off Feature (USA)):

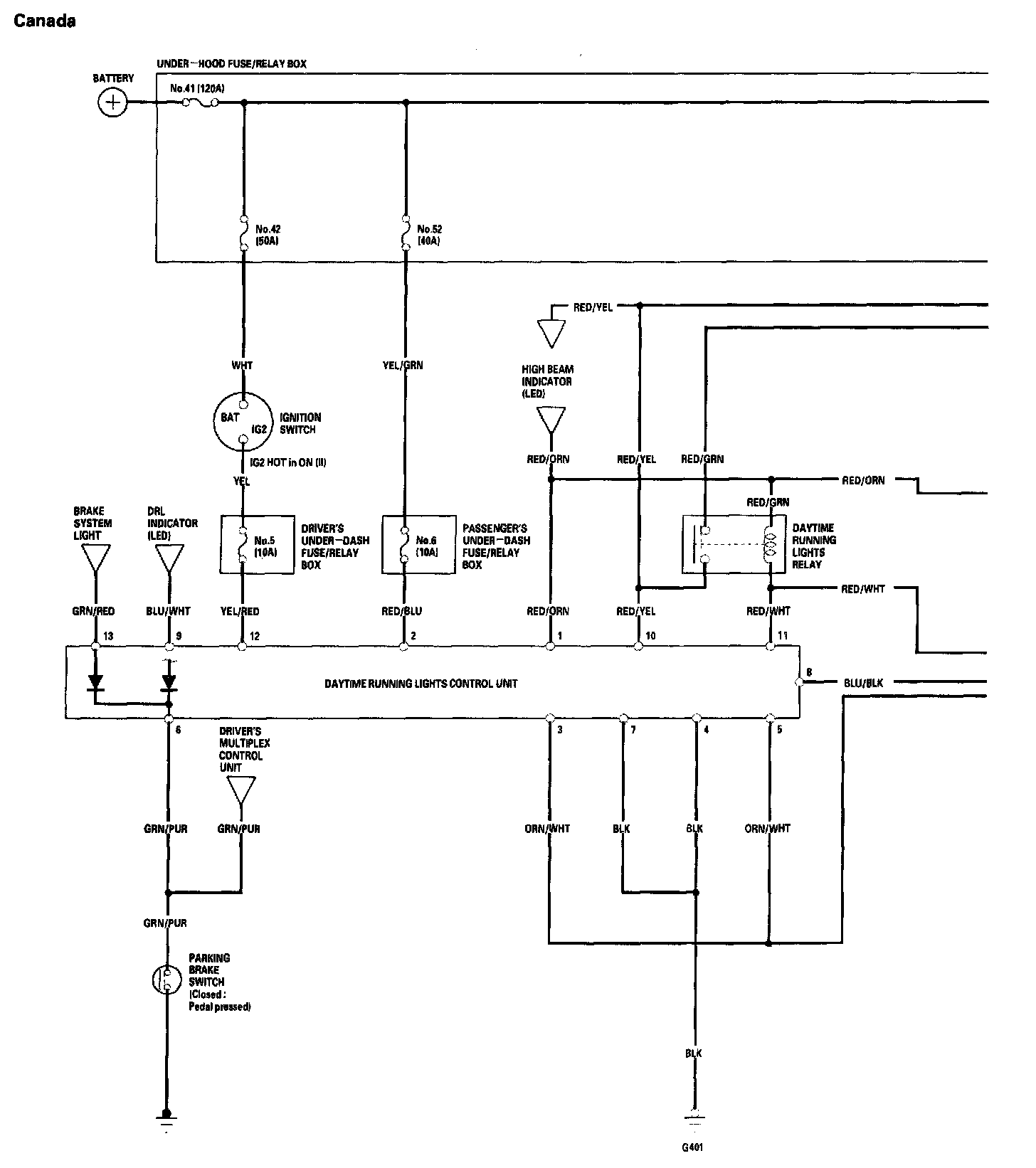

Exterior Lights - Circuit Diagram (With Automatic Lights-off Feature (Canada)):

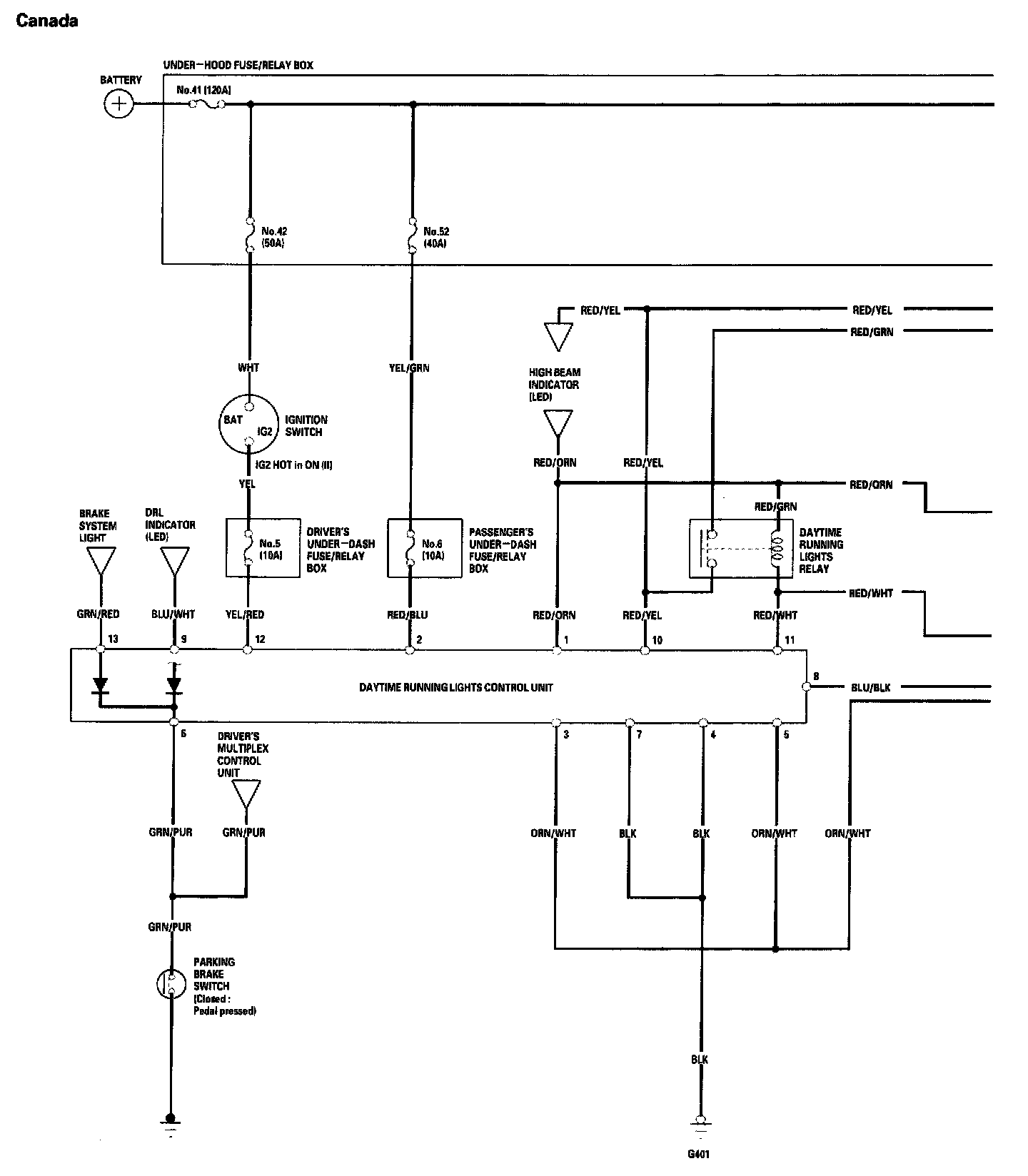

Exterior Lights - Circuit Diagram (With Automatic Lights-off Feature (Canada)):

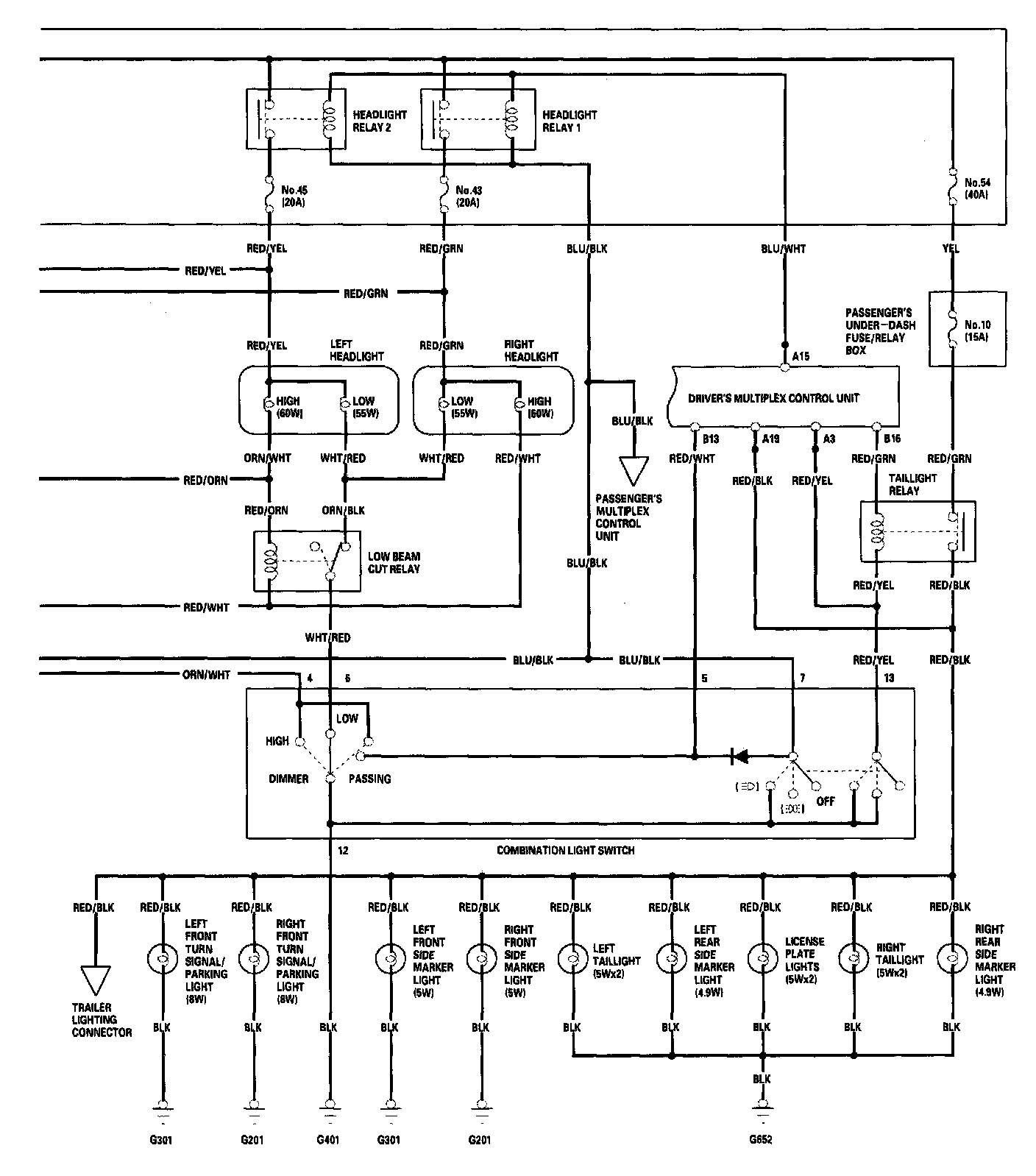

Exterior Lights - Circuit Diagram (With Automatic Lights-off Feature (Canada)):

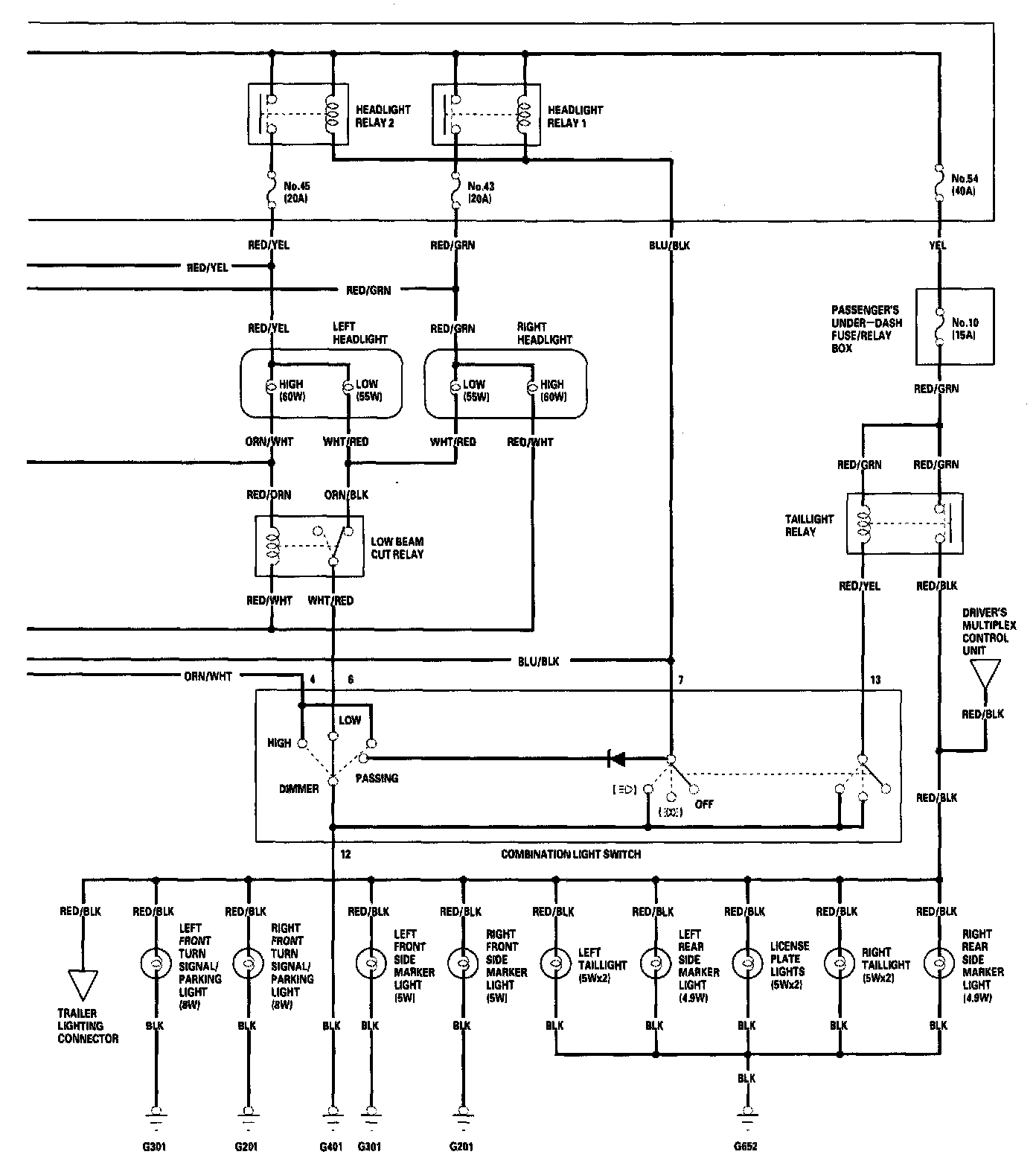

Exterior Lights - Circuit Diagram (With Automatic Lights-off Feature (Canada)):
