Honda Truck
>>
2004
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
Connector Views
Connector Views

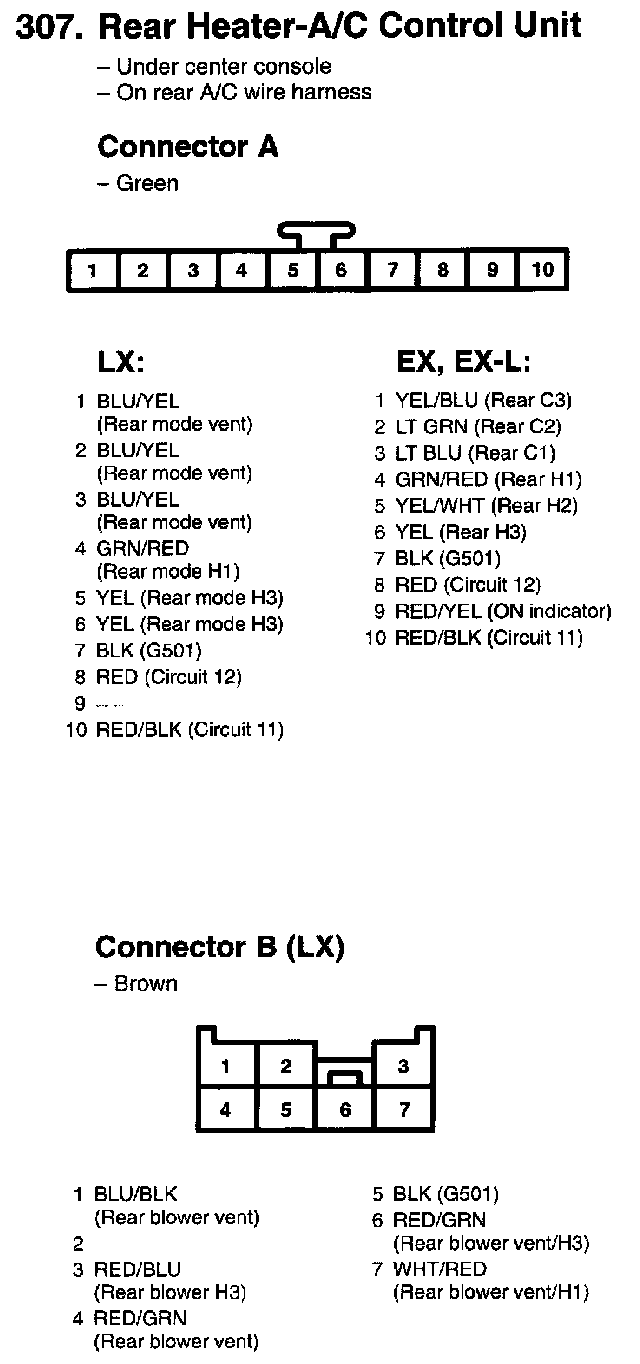

(LX):

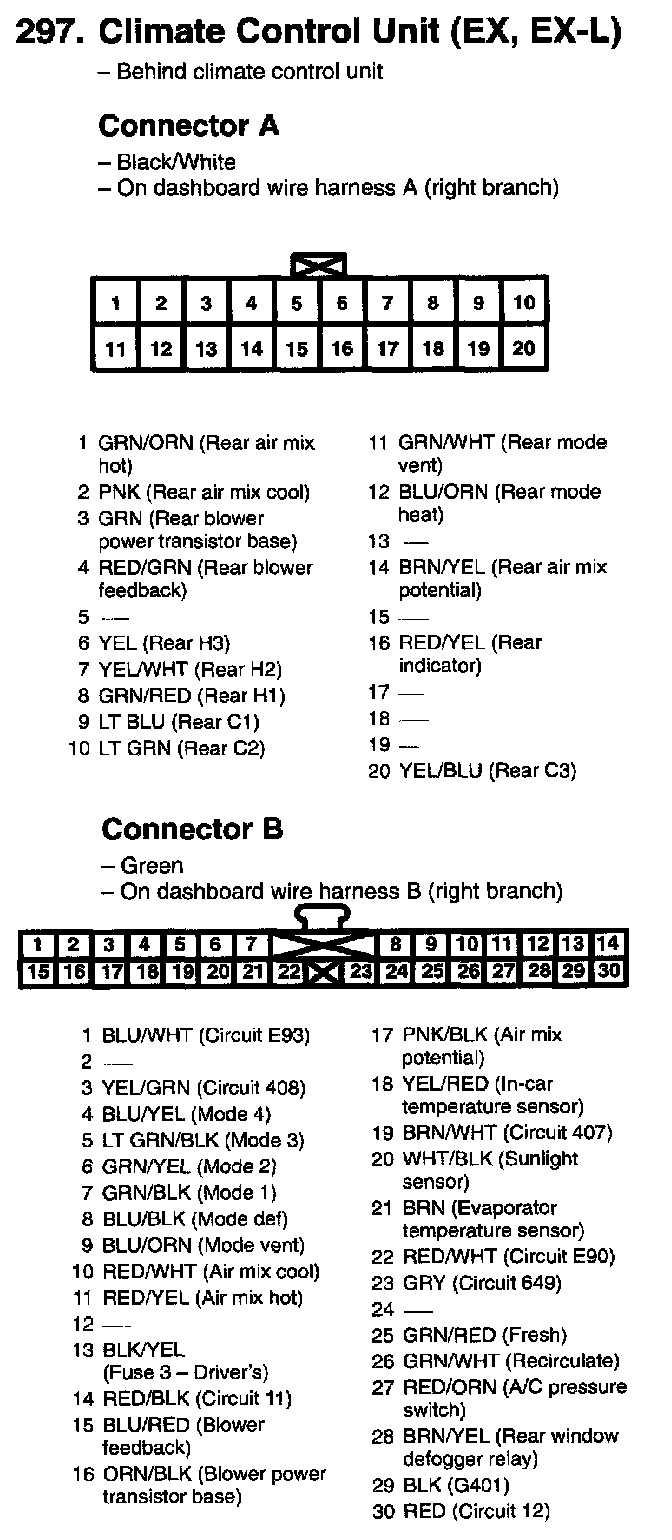

(EX, EX-L):
