Honda Truck
>>
2004
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

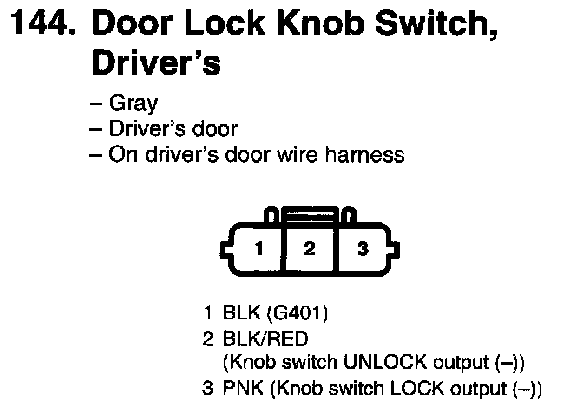

Power Door Lock Switch
Power Door Lock Switch

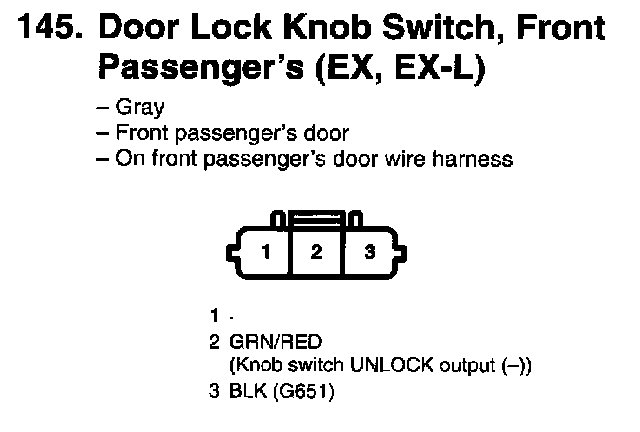

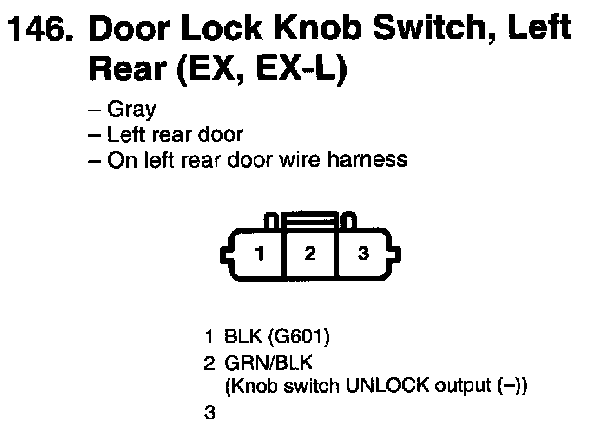

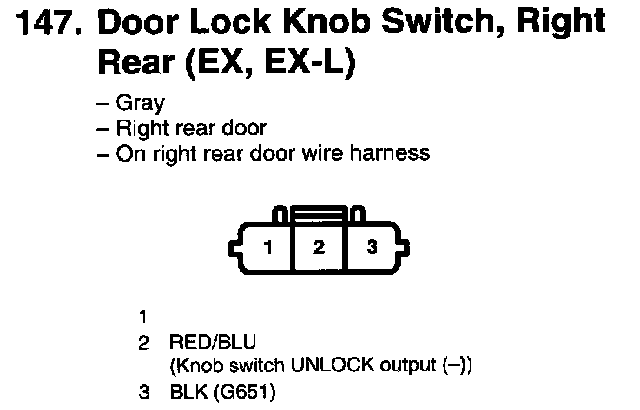

(EX, EX-L):
(EX, EX-L):
(EX, EX-L):
