Circuit Diagram, Immobilizer System
Circuit Diagram, Immobilizer System

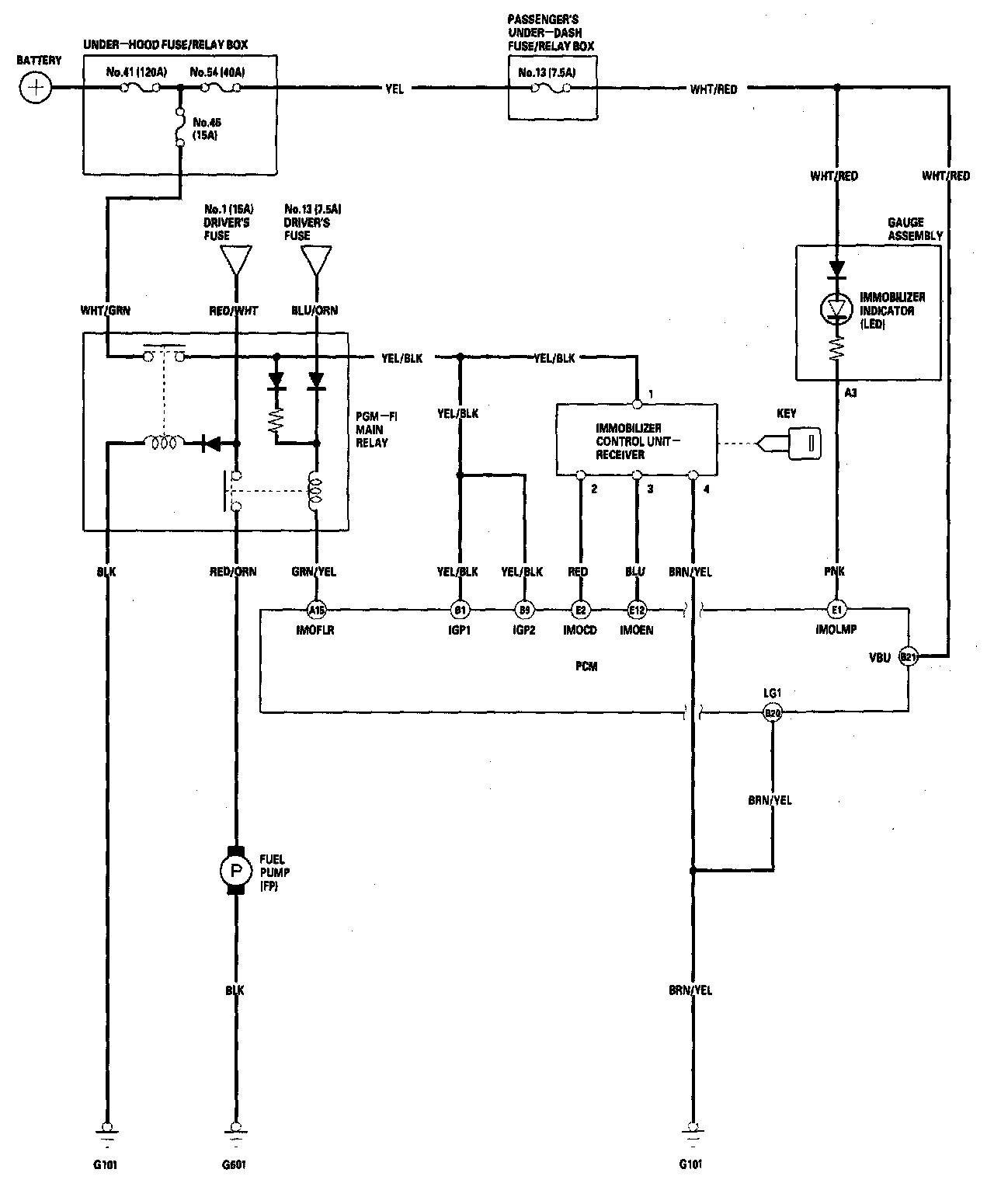

Immobilizer System - Circuit Diagram:
