Honda Truck
>>
2004
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

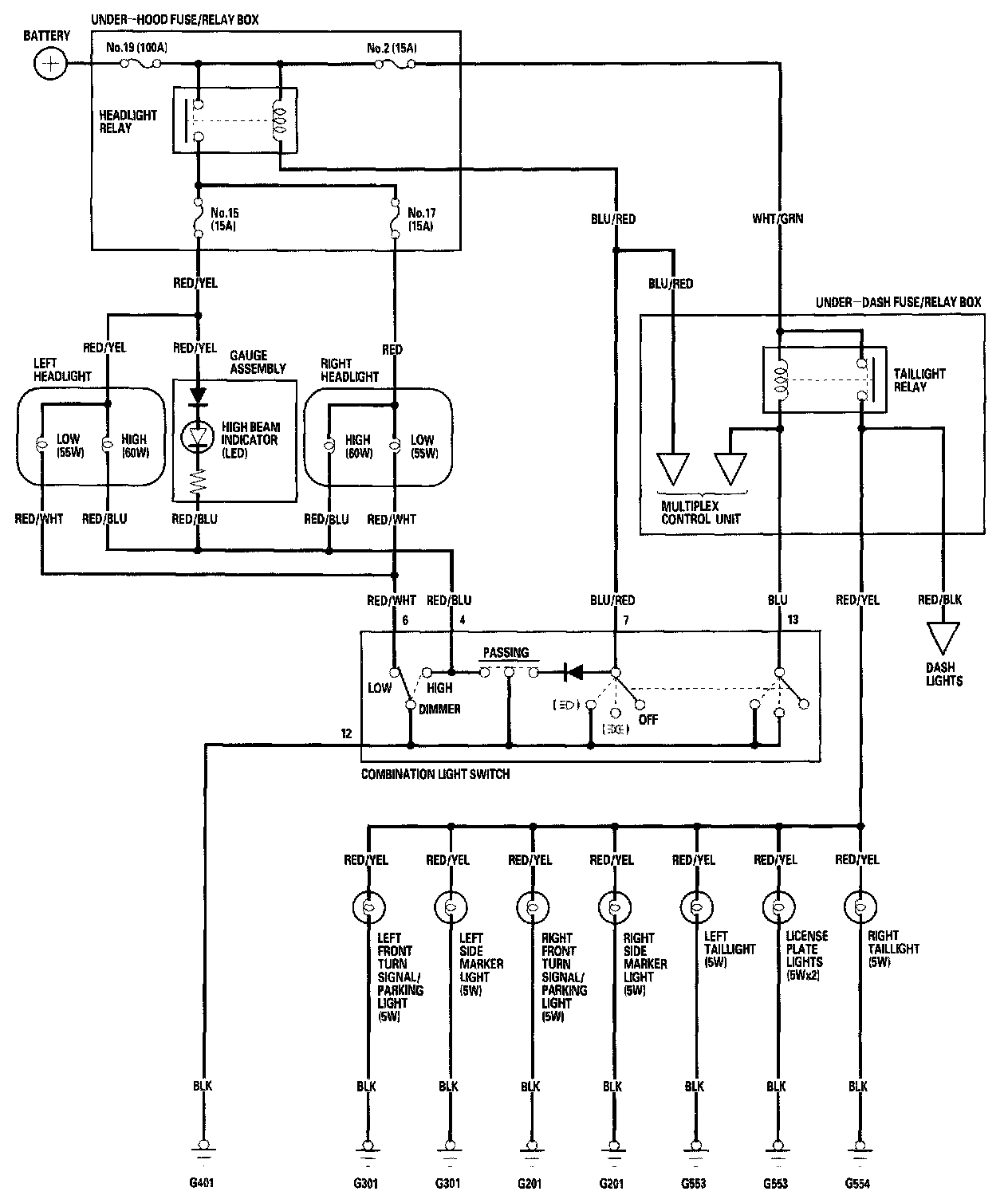

Exterior Lights - Circuit Diagram (Canada):

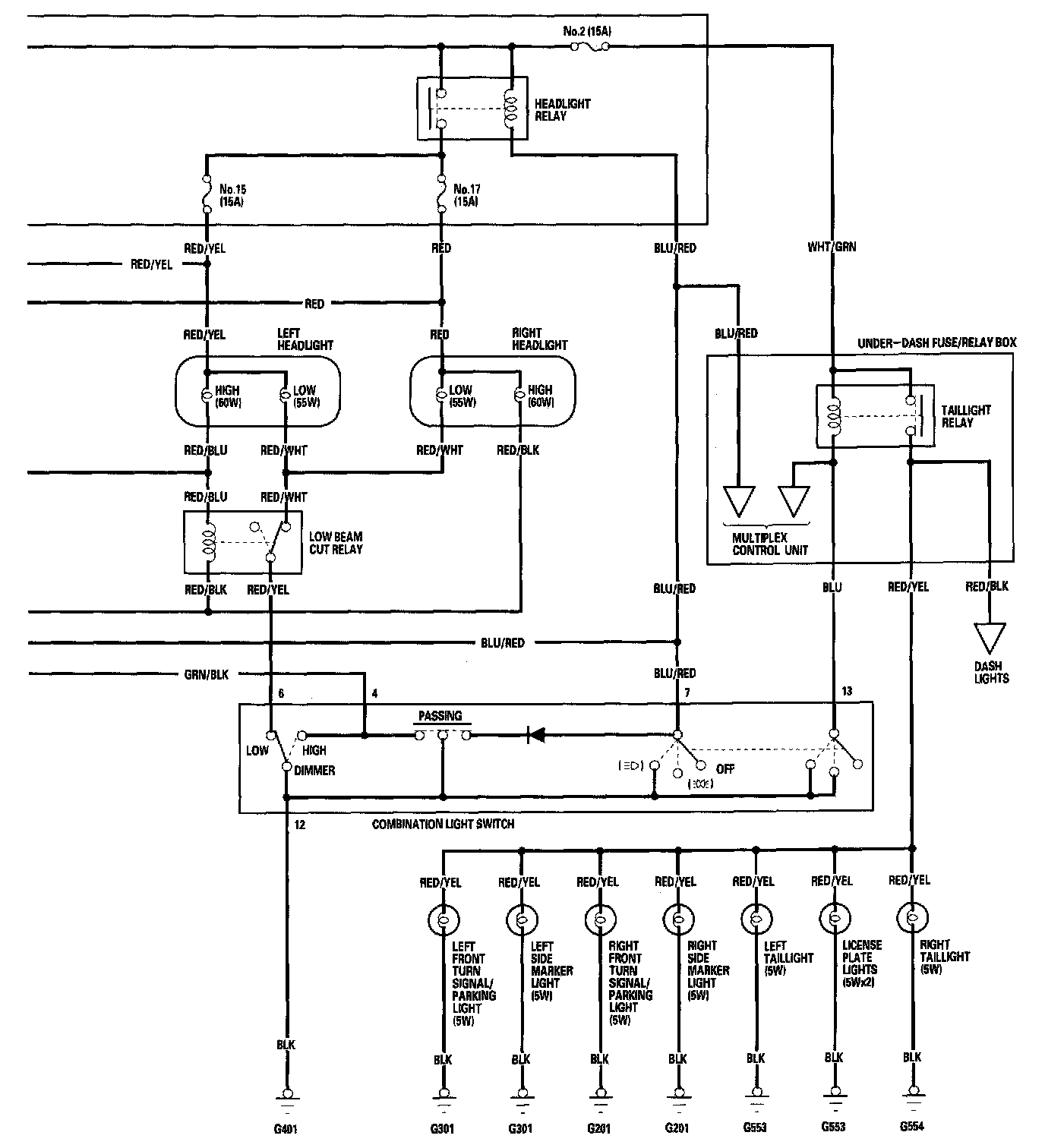

Exterior Lights - Circuit Diagram (Canada):

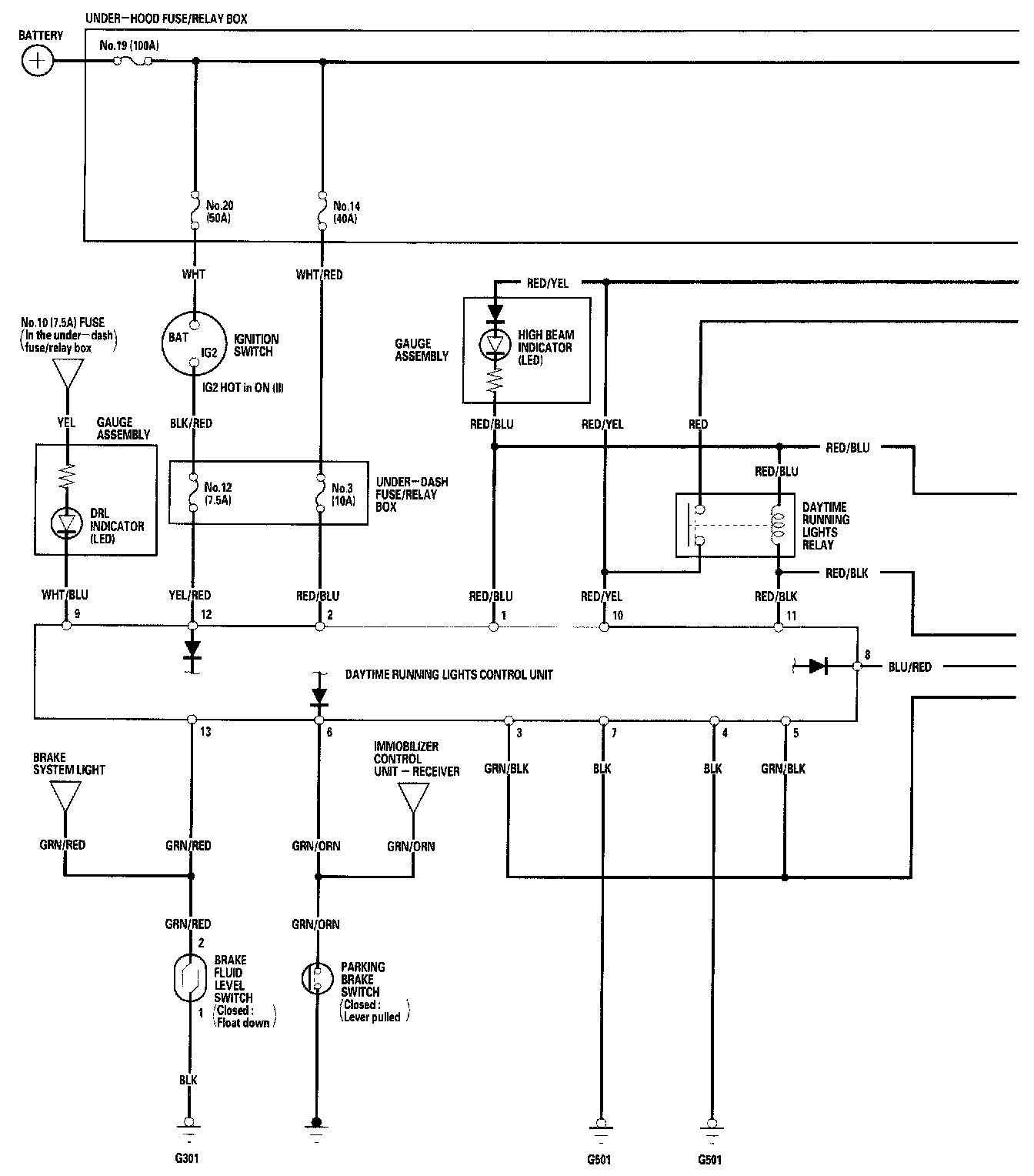

Exterior Lights - Circuit Diagram (USA):

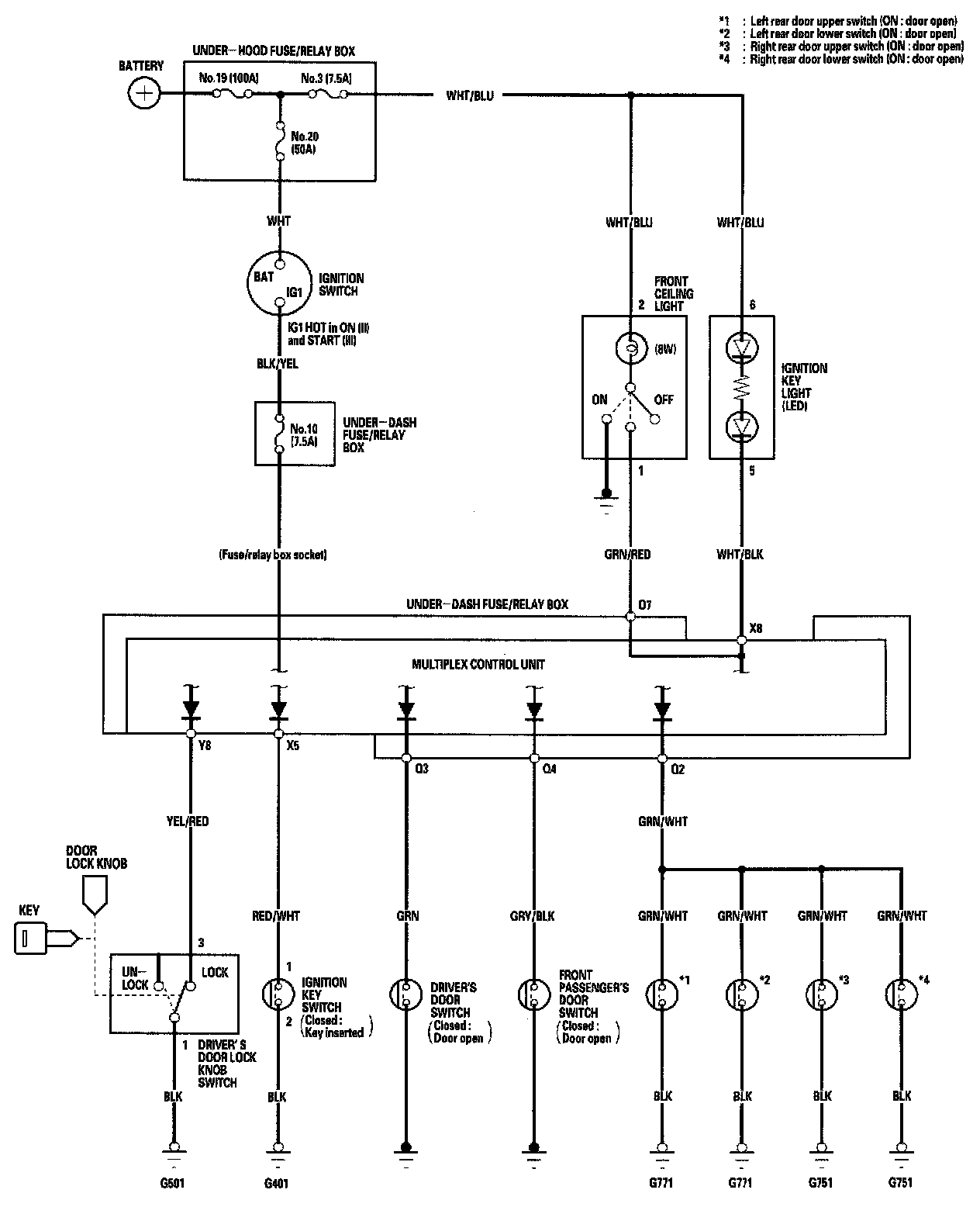

Entry Light Control System - Circuit Diagram:
