With A/C

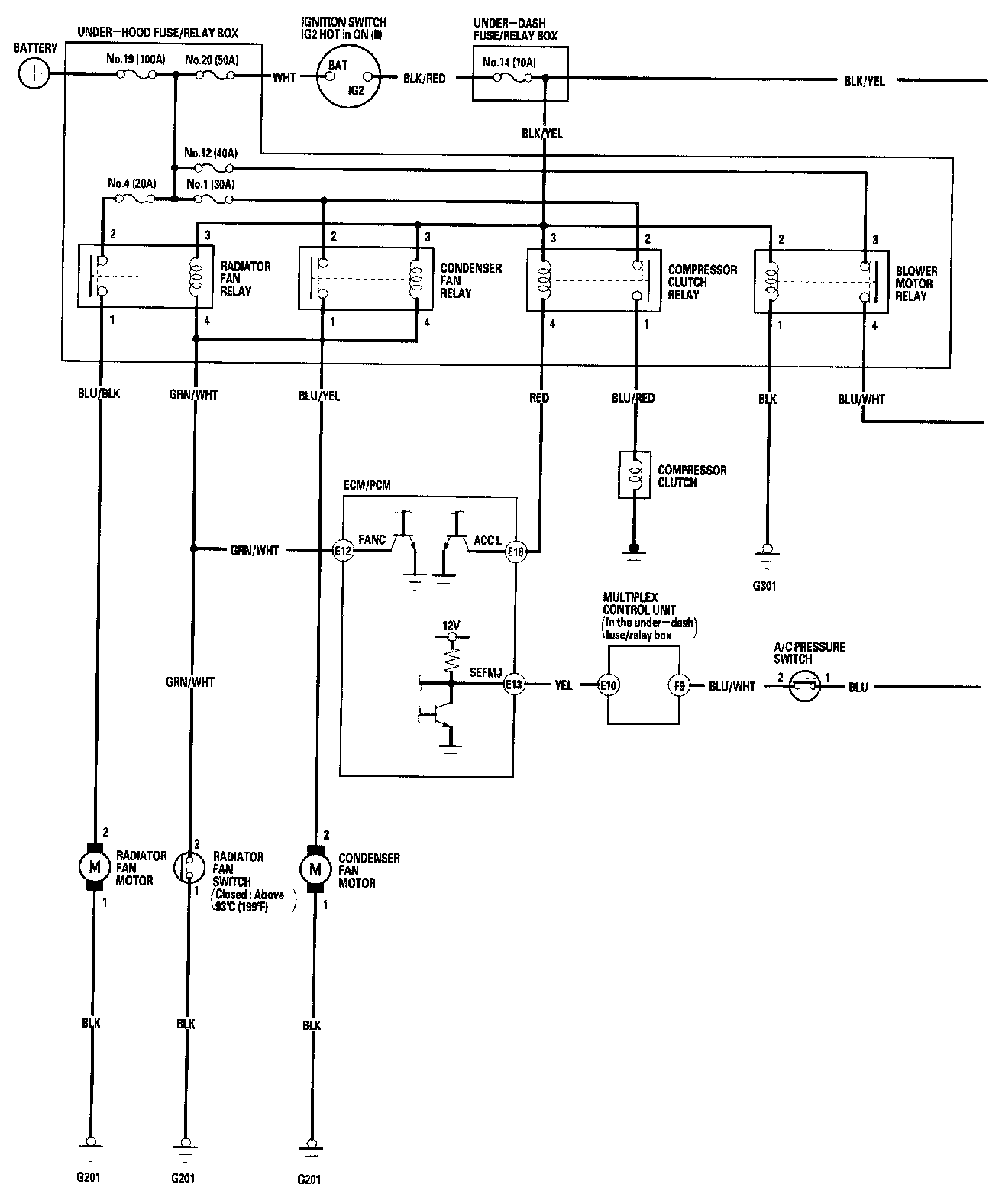

Heating/Air Conditioning - Circuit Diagram Part 1:

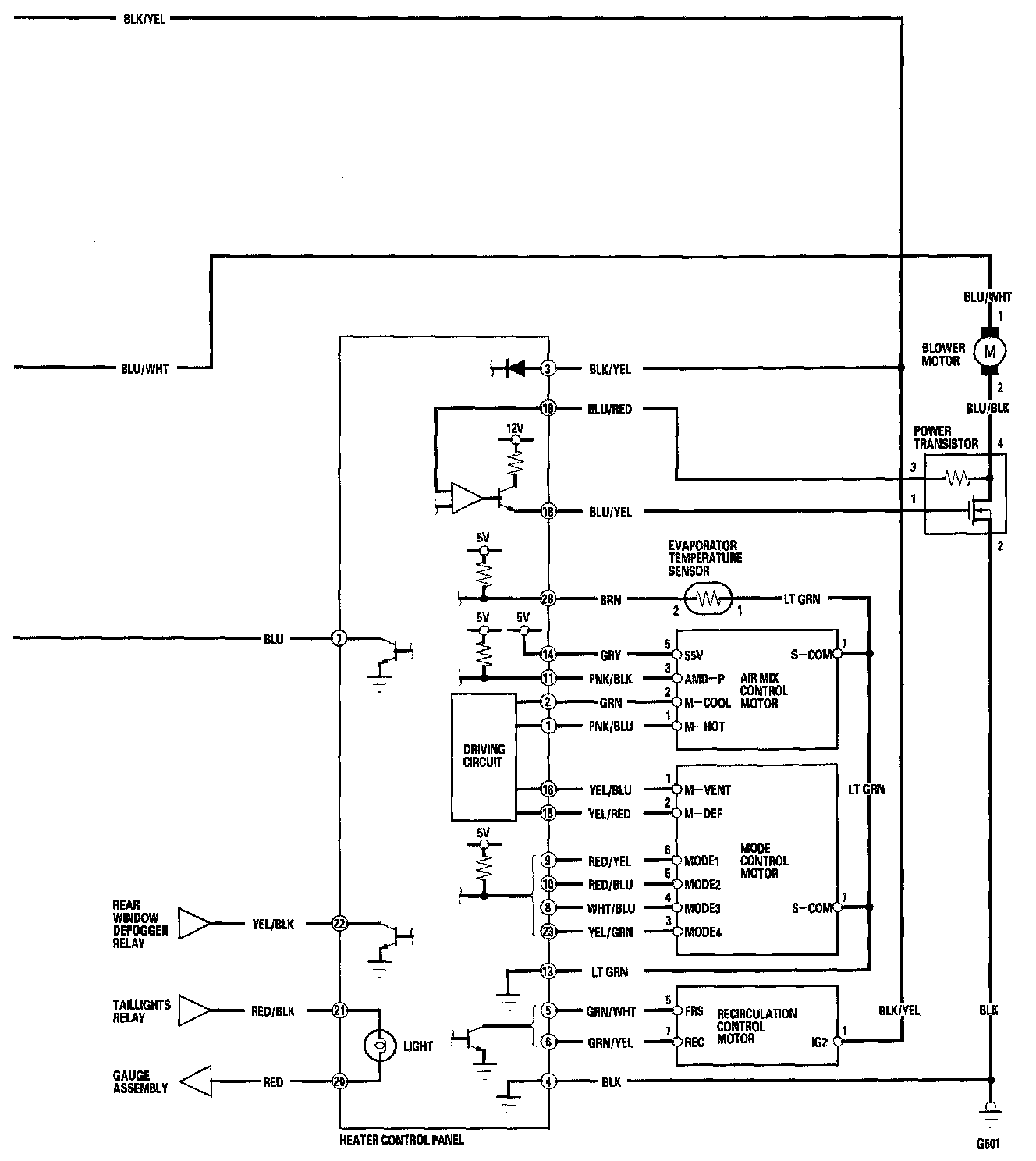

Heating/Air Conditioning - Circuit Diagram Part 2:
