Home >> Honda Truck >> 2004 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 151-175 >> 169

Views 151-175: 169

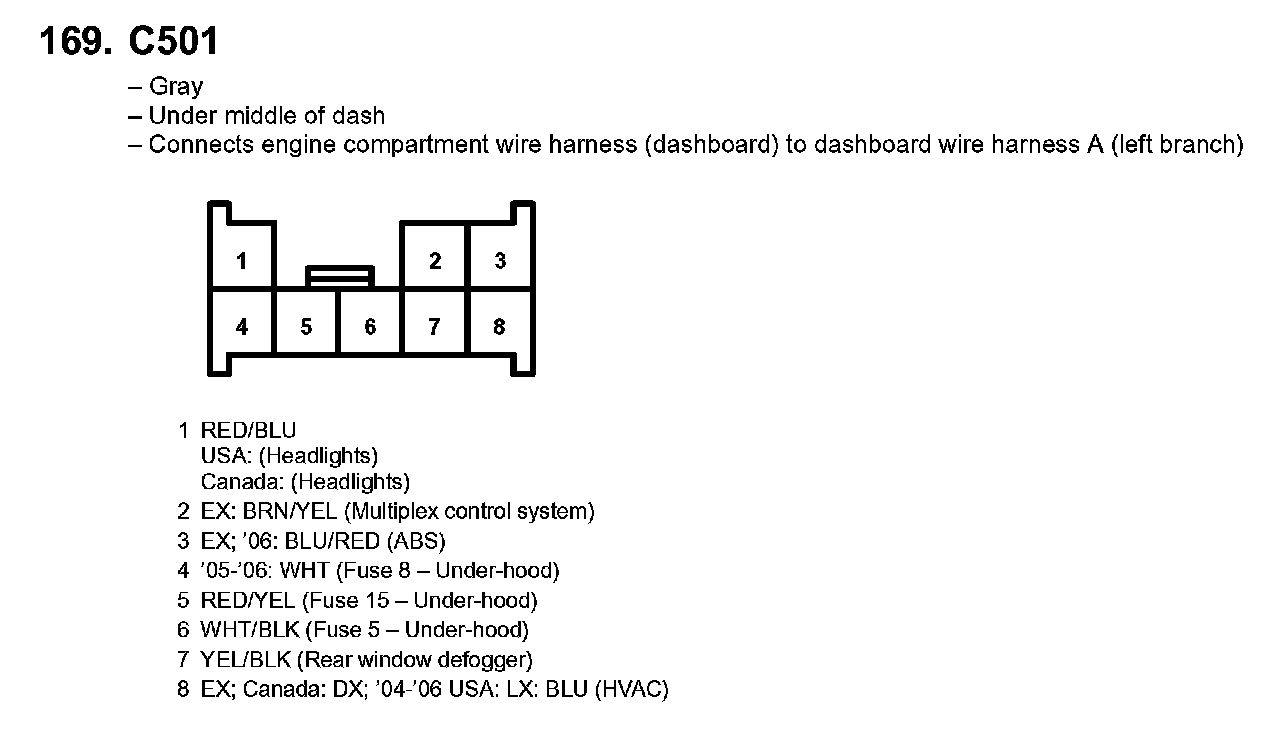

169. C501:
