Front Driveshafts Installation

Front Driveshafts Installation

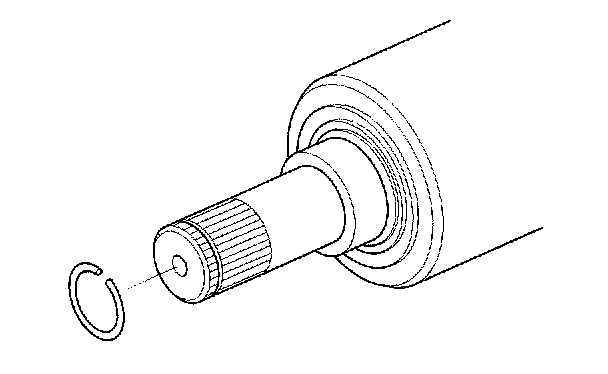

1. Install a new set ring in the set ring groove of the driveshaft (left driveshaft).

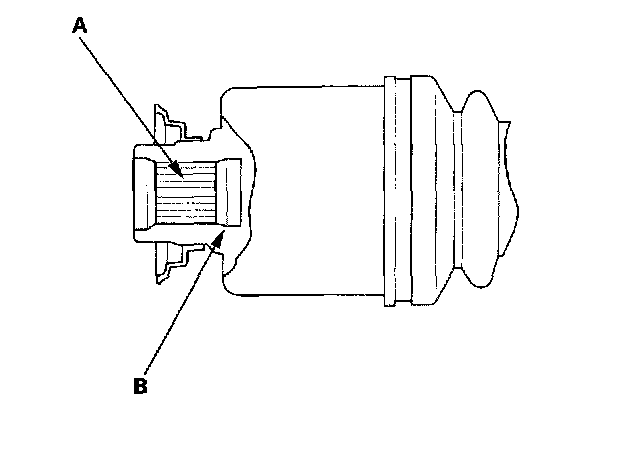

2. Apply 2.0 - 3.0 g (0.07 - 0.10 oz) of grease to the whole splined surface (A) of the right driveshaft. After applying grease, remove the grease from the splined grooves at intervals of 2 - 3 splines and from the set ring groove (B) so that air can bleed from the intermediate shaft.

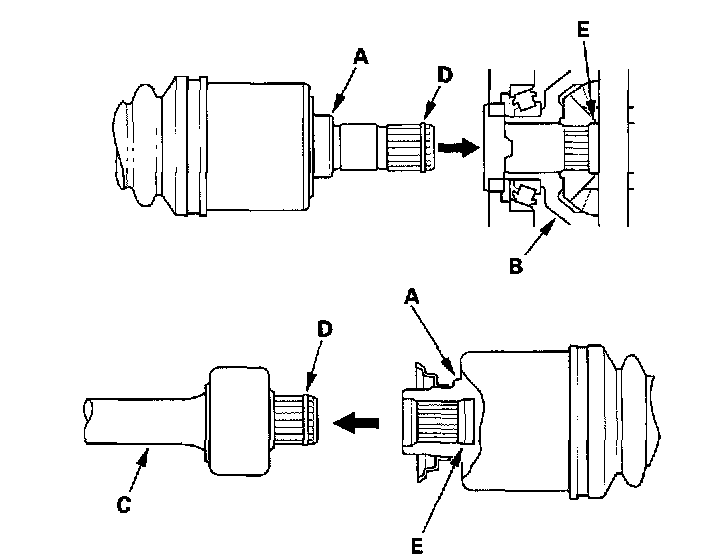

3. Clean the areas where the driveshaft contacts the differential thoroughly with solvent or brake cleaner, and dry with compressed air. Insert the inboard end (A) of the driveshaft into the differential (B) or intermediate shaft (C) until the set ring (D) locks in the groove (E).

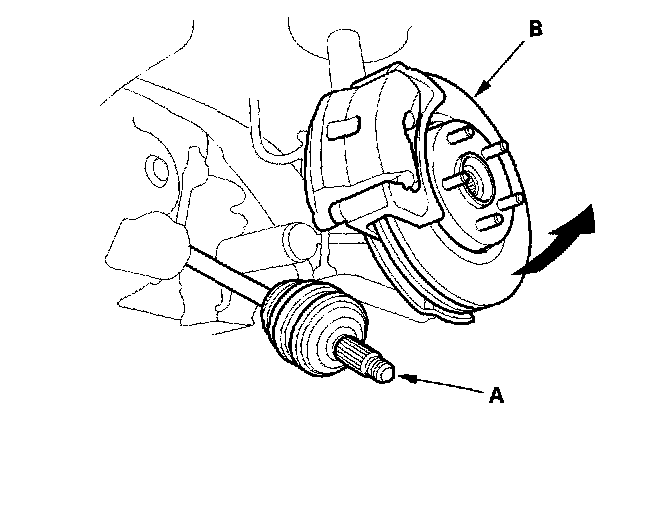

4. Install the outboard joint (A) into the front hub (B).

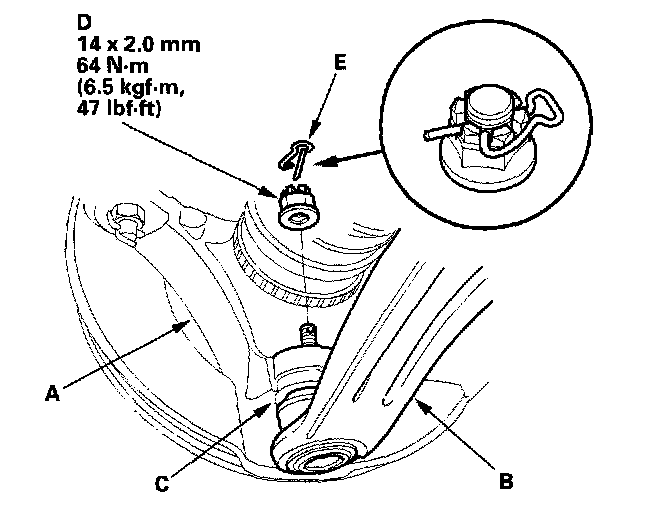

5. Install the knuckle (A) onto the lower arm (B). Be careful not to damage the ball joint boot (C). Wipe off the grease before tightening the nut at the ball joint. Torque the new castle nut (D) to the lower torque specification, then tighten it only far enough to align the slot with the pin hole. Do not align the nut by loosening.
6. Install the new clip (E) into the pin hole as shown.

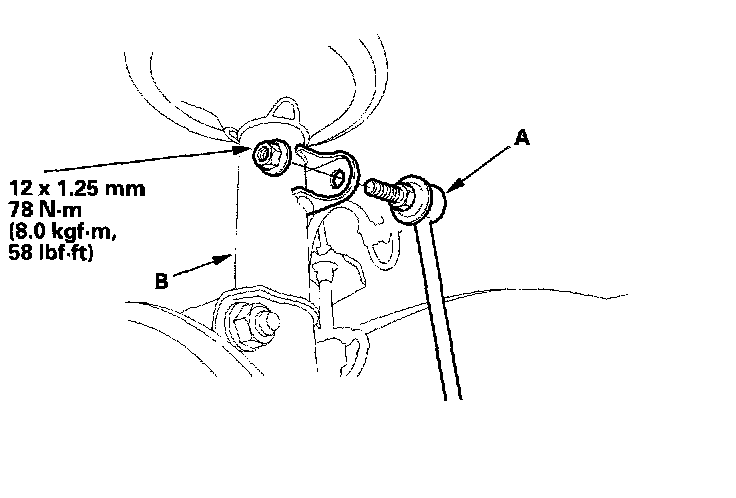

7. Install the stabilizer link (A) to the damper (B).

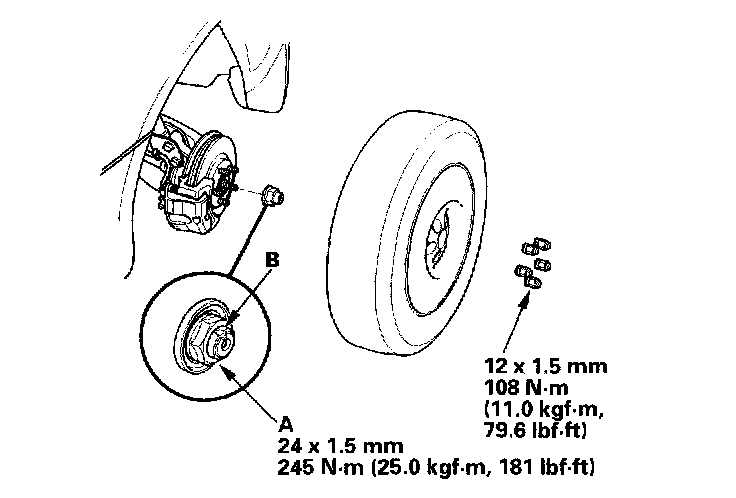

8. Install a new spindle nut (A), then tighten the nut. After tightening, use a drift to stake the spindle nut shoulder (B) against the driveshaft.
9. Clean the mating surfaces of the brake disc and the front wheel, then install the front wheel with the wheel nuts.
10. Refill the transmission with recommended fluid.
11. Check the front wheel alignment, and adjust it if necessary.
