Lower Arm A

Removal/Installation
1. Raise the rear of the vehicle, and make sure it is securely supported. Remove the rear wheels.

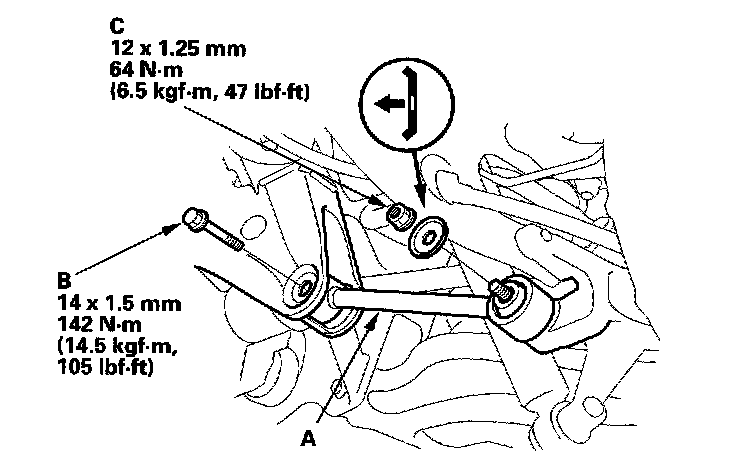

2. Remove lower arm A mounting bolt (B).
3. Remove lower arm A mounting nut (C).
4. Remove lower arm A from the vehicle.
5. Install lower arm A in the reverse order of removal, and note these items:
- Place a jack under the lower arm, and raise the suspension to load it with the vehicle's weight.
- Tighten all mounting hardware to the specified torque values.
- Before installing the wheel, clean the mating surfaces of the brake disc/drum and the inside of the wheel.
- Check the rear wheel alignment, and adjust it if necessary.
