Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement

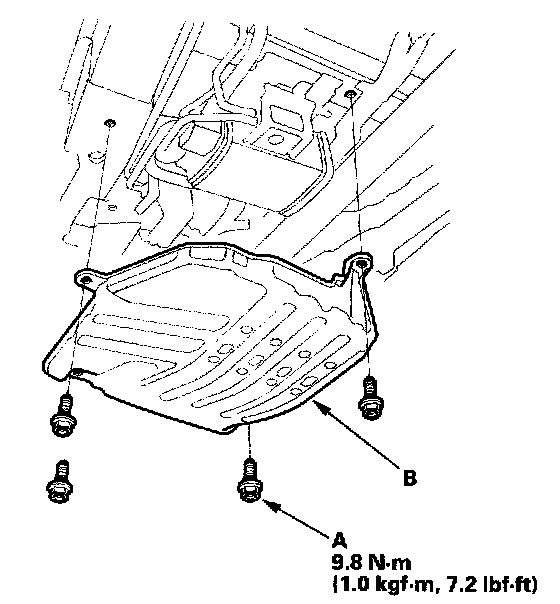

1. Remove the bolts (A) and the EVAP canister cover (B).

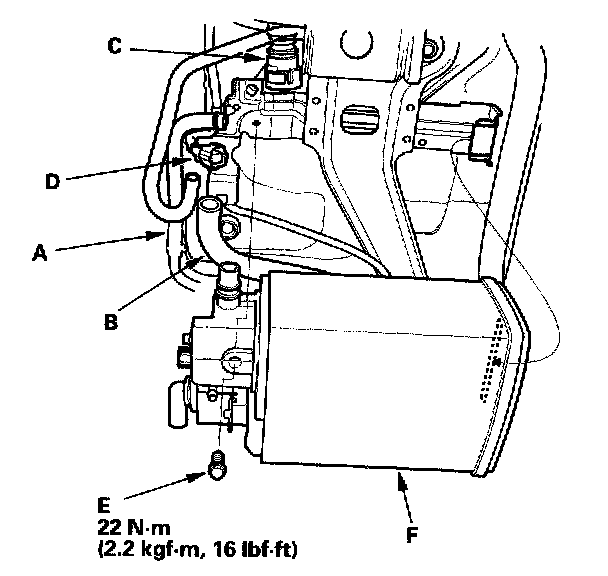

2. Remove the vacuum hoses (A) and vent hose (B), quick connect fitting (C), and EVAP canister vent shut valve 2P connector (0).
3. Remove the bolt (E).
4. Remove the EVAP canister (F).
5. Install the parts in the reverse order of removal.
