Home
>>
Honda Truck
>>
2003
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Secondary Shaft
Secondary Shaft

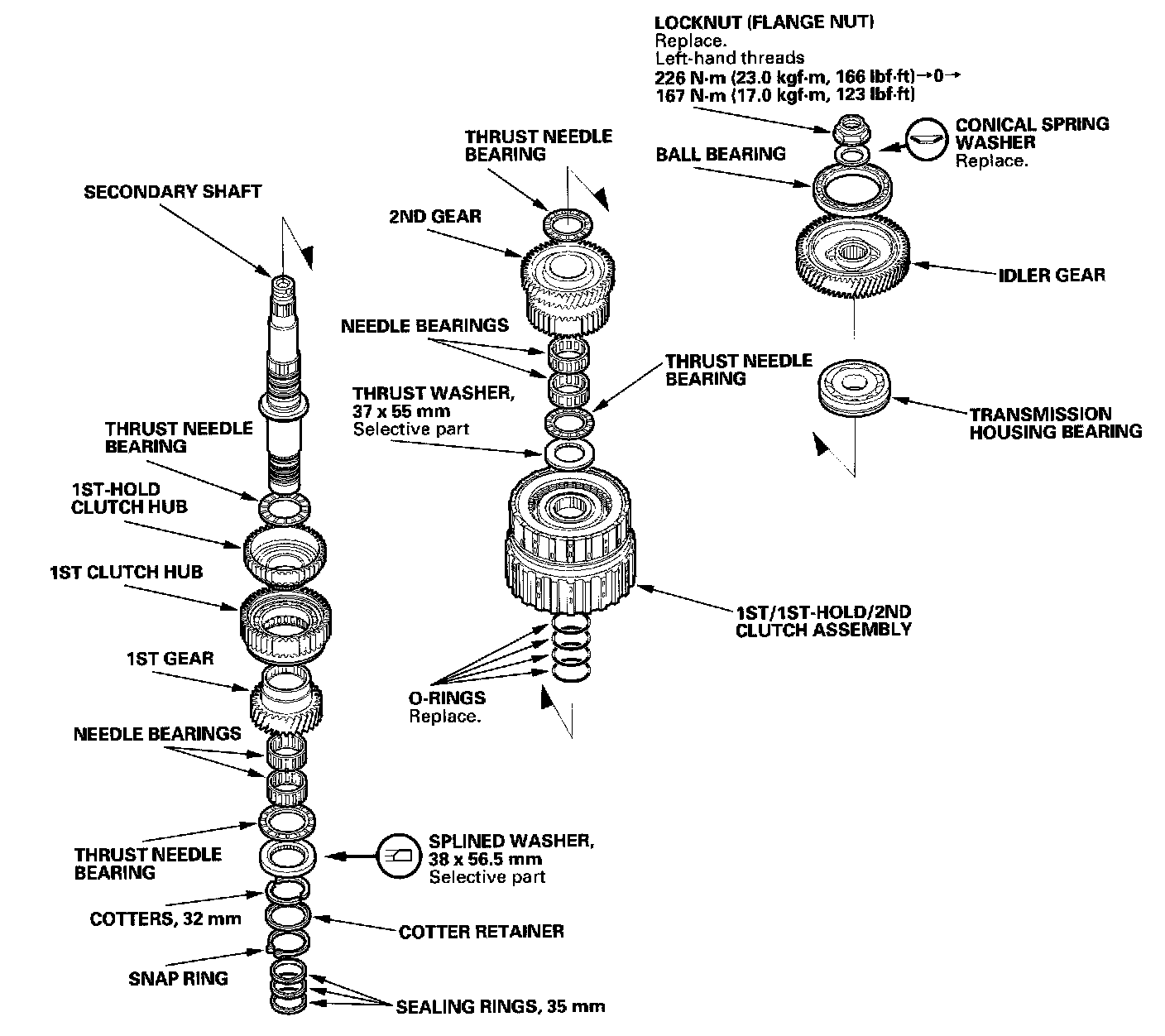

Secondary Shaft Disassembly, Inspection, and Reassembly
