Home >> Honda Truck >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Circuit Diagrams

Circuit Diagrams

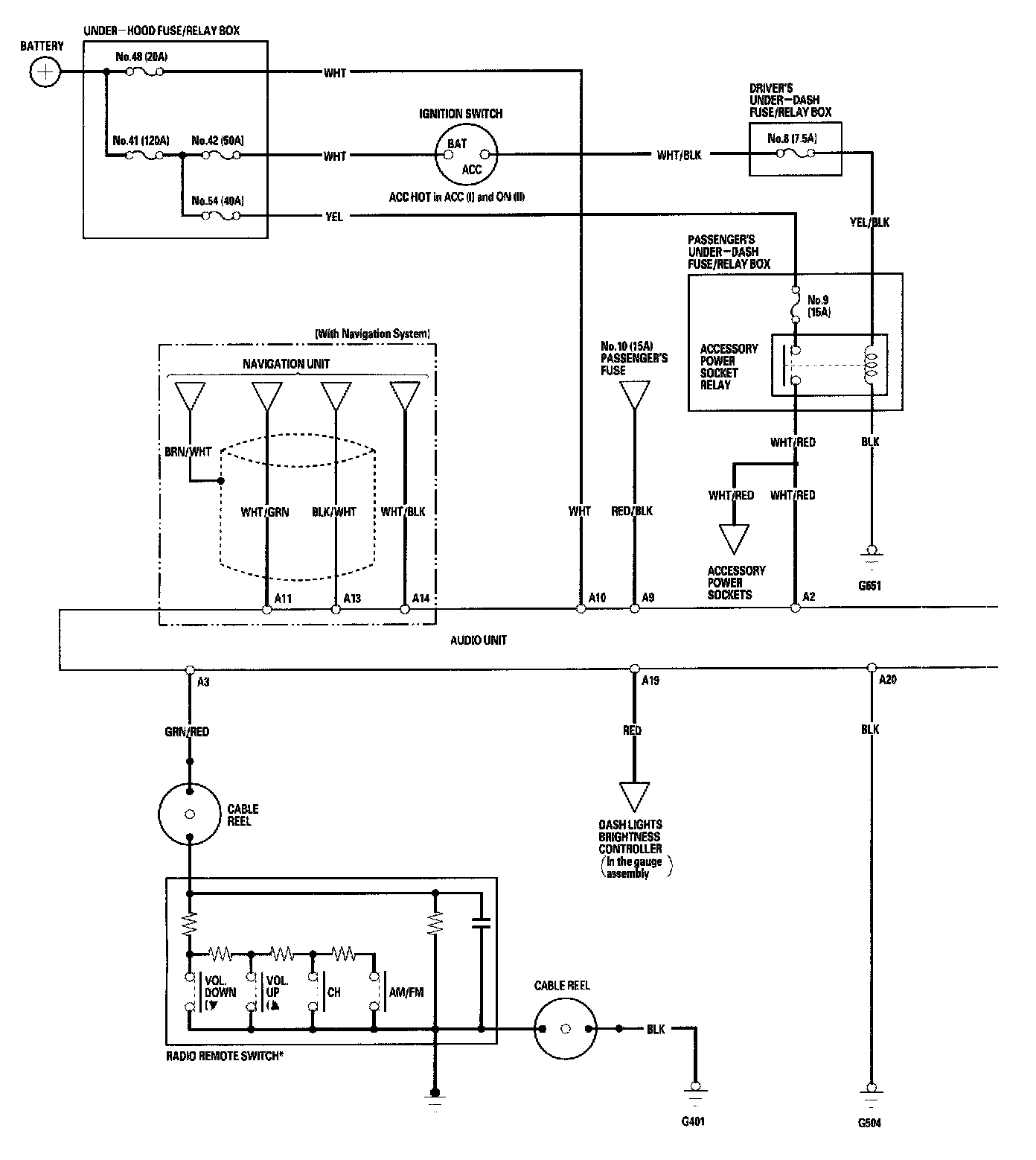

Stereo Sound System - Circuit Diagram Part 1:

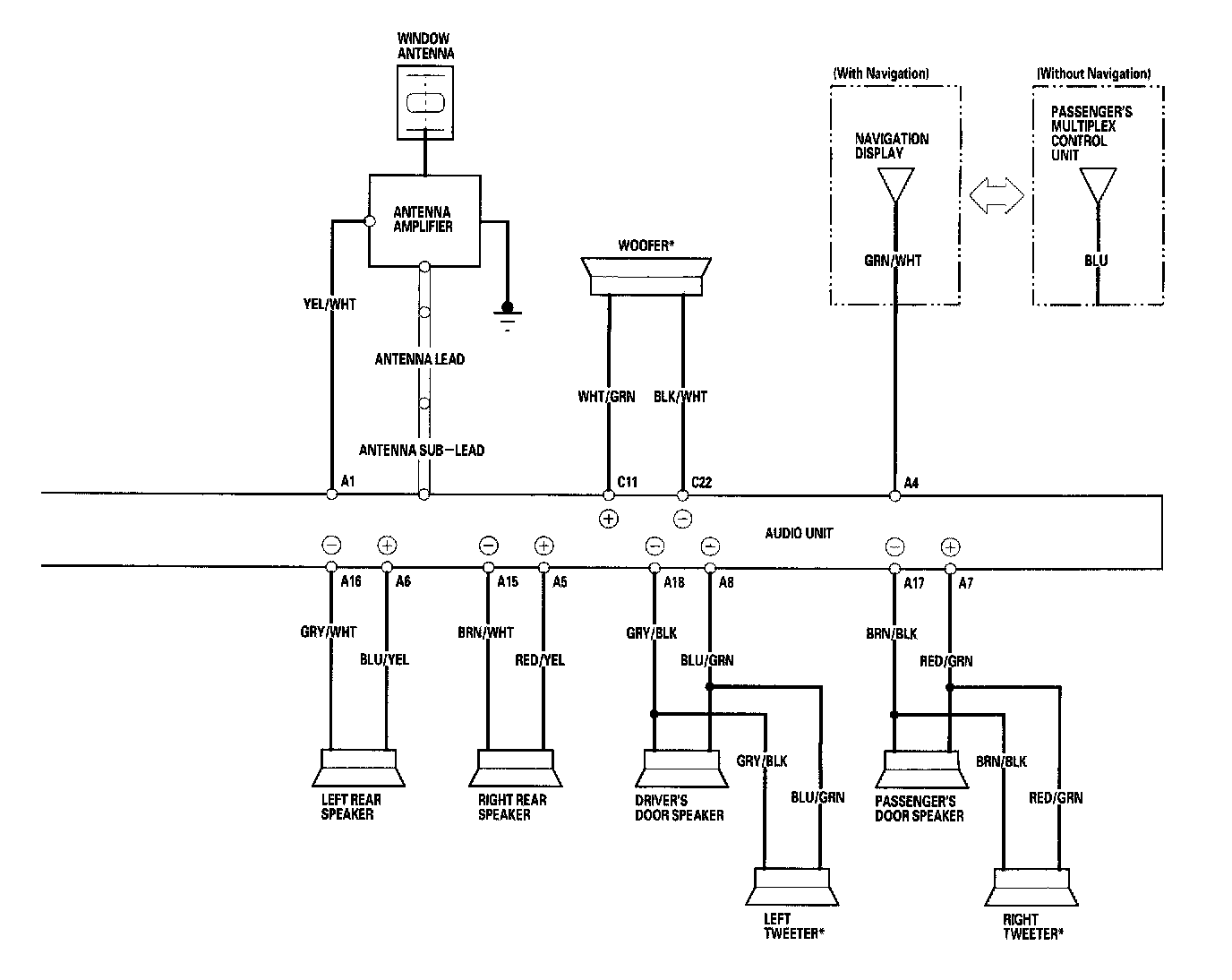

Stereo Sound System - Circuit Diagram Part 2:
