Circuit E90 - ECT Sensor Signal
Circuit E90 - ECT Sensor Signal

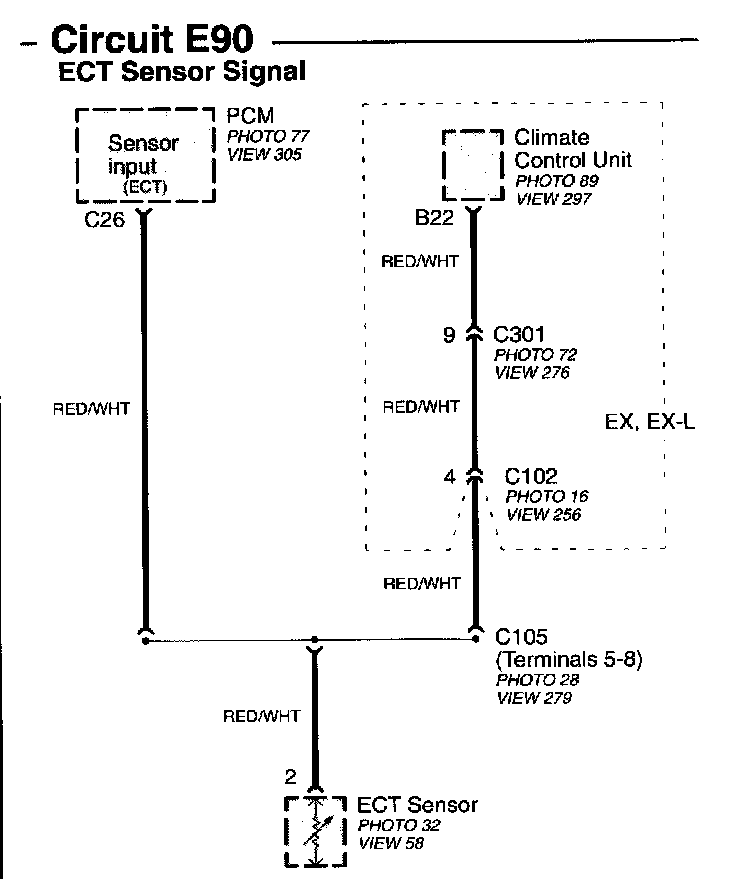

Circuit E90 - ECT Sensor Signal:

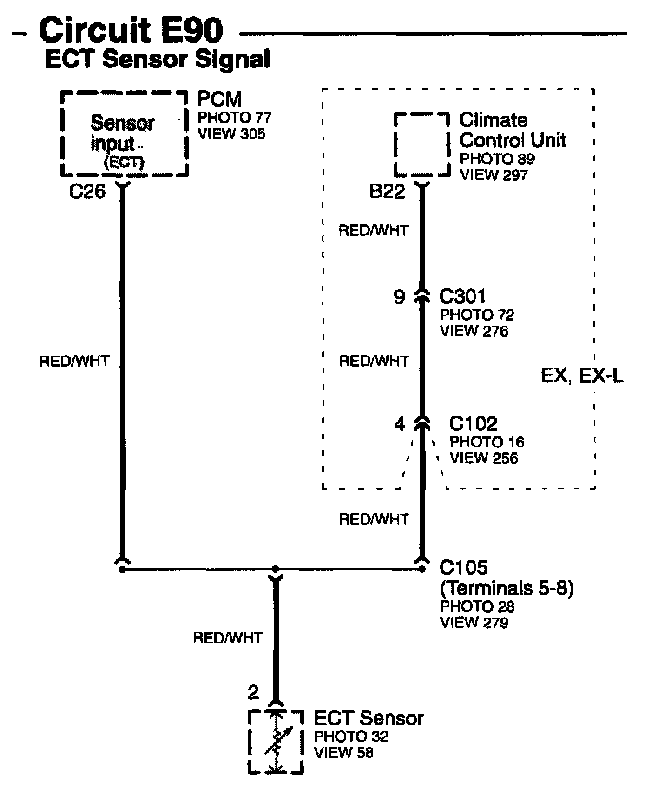

Circuit E90 - ECT Sensor Signal:
