Home >> Honda Truck >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 89

Diagram Set 89

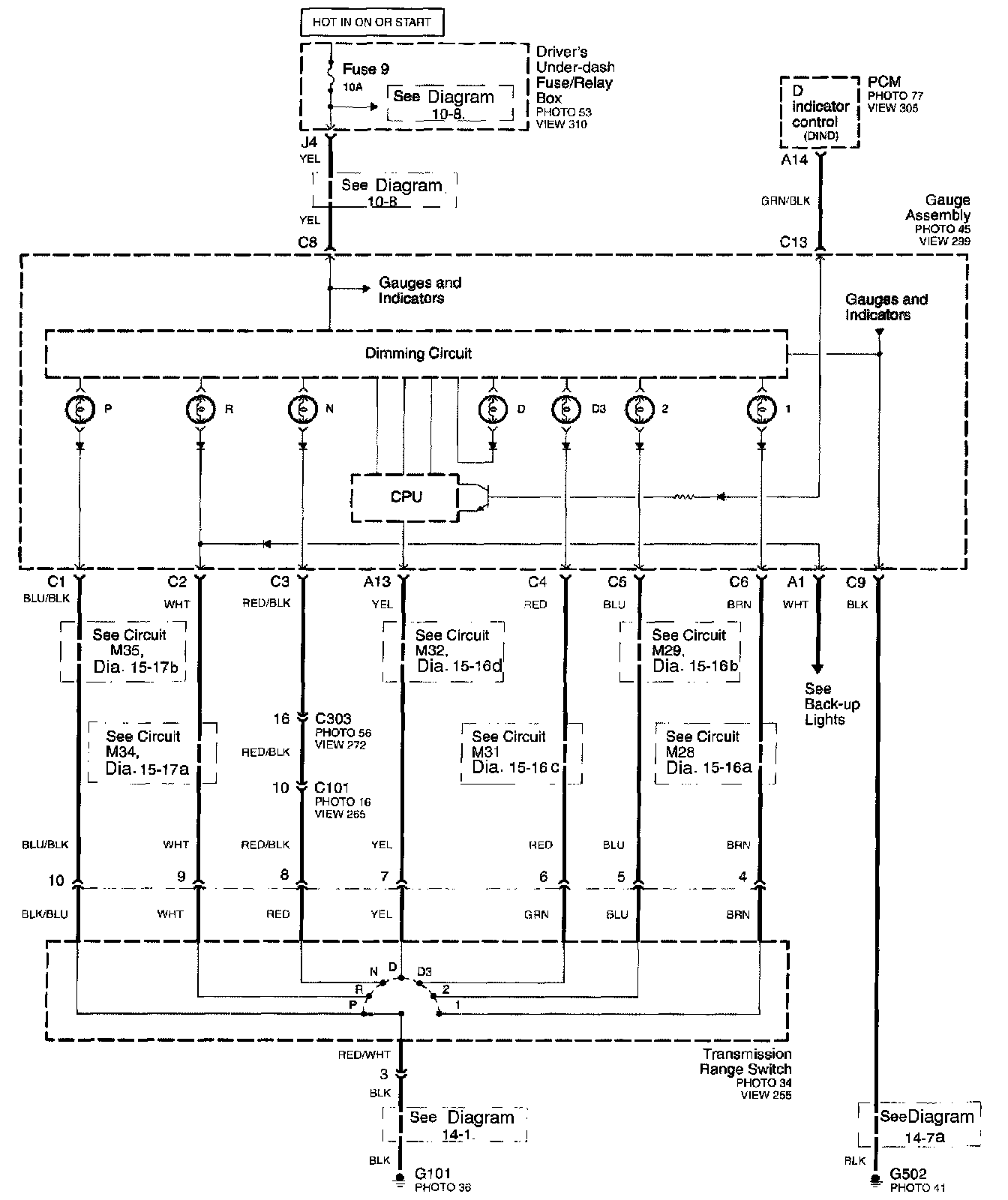

Diagram 89:
