Home >> Honda Truck >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 40

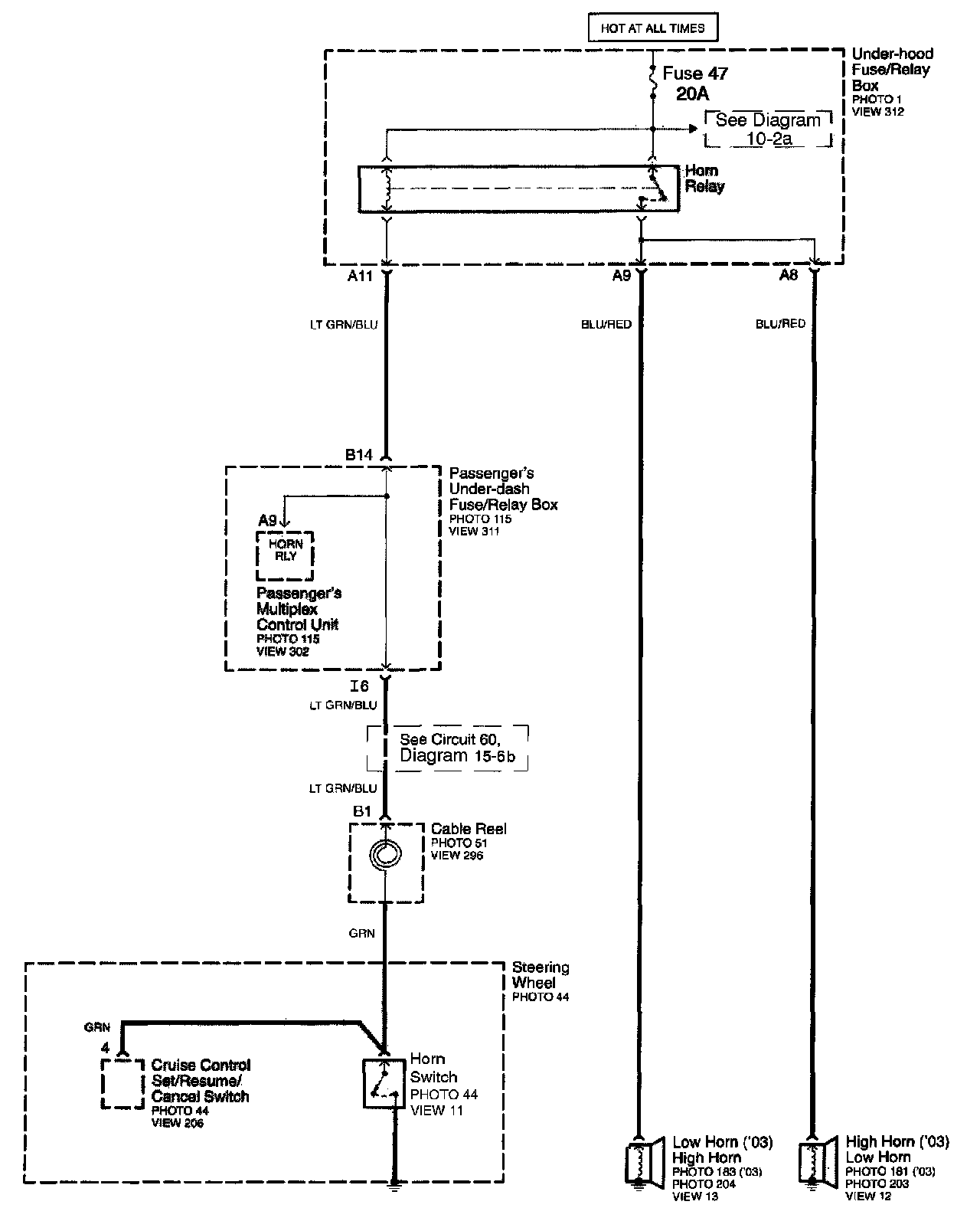

Diagram Set 40

Diagram 40:
