Honda Truck
>>
2003
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 142
Diagram Set 142

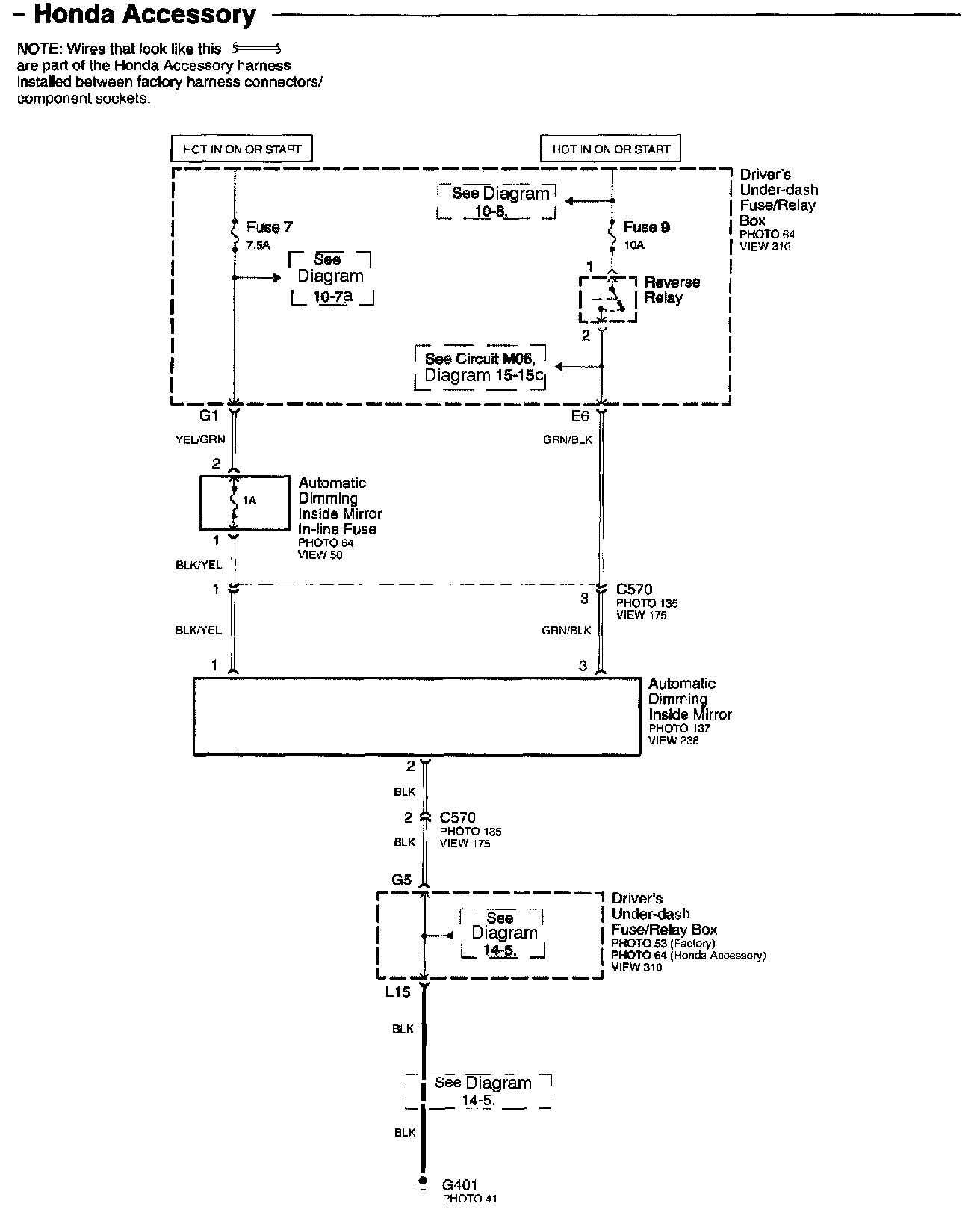

Diagram 142 (Honda Accessory):
