Home
>>
Honda Truck
>>
2003
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor
Fan Controls

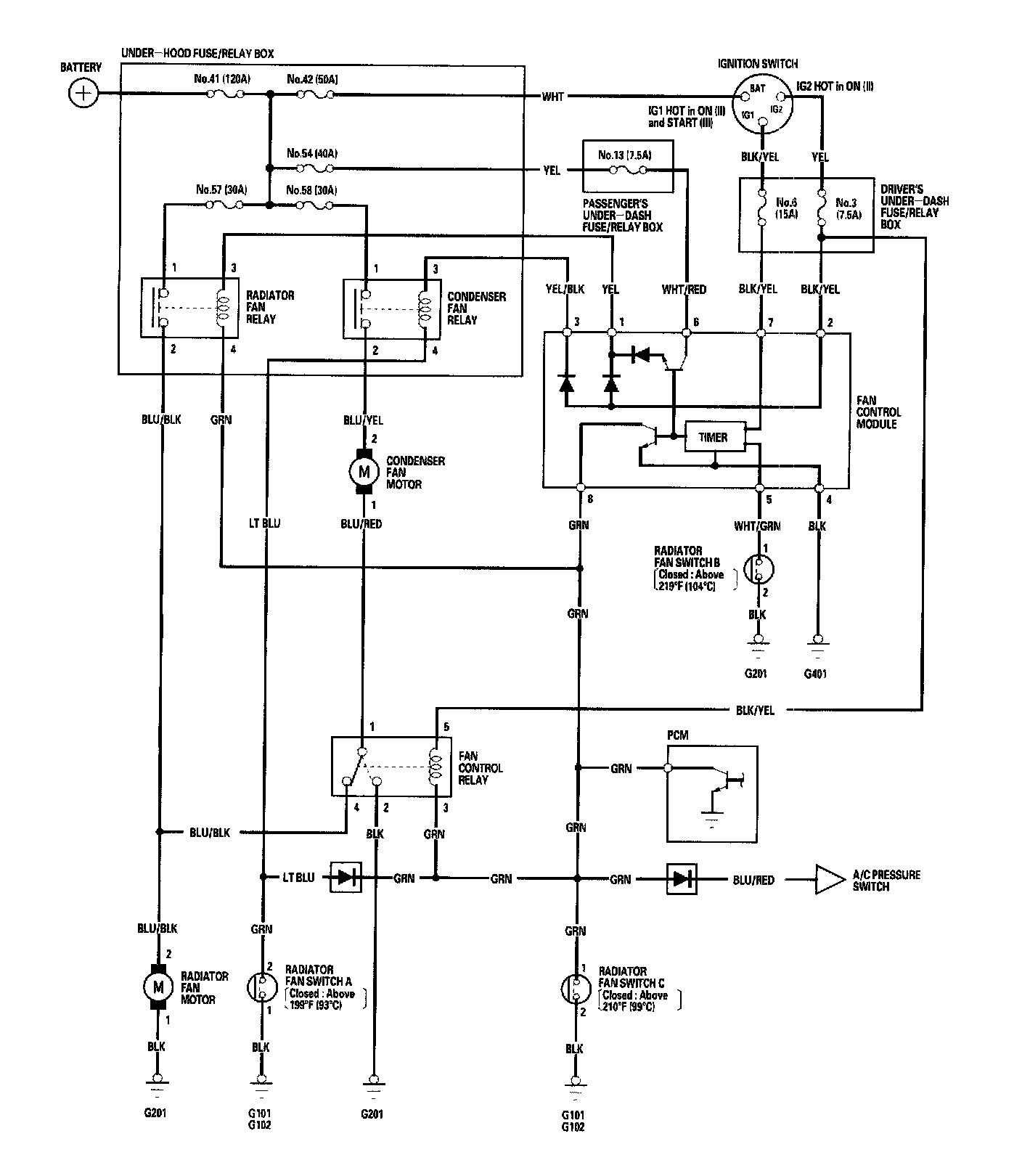

Circuit Diagram
