Drink Holders: Service and Repair

Second Row Seat Beverage Holder/Tray Replacement

NOTE: Take care not to tear the seams or damage the seat covers.

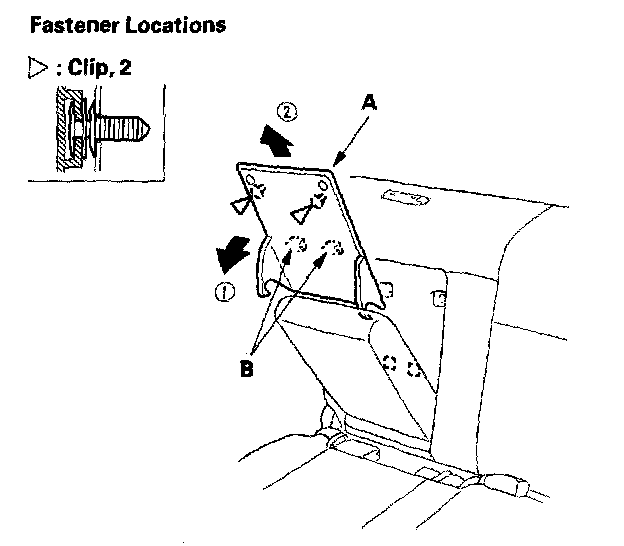

1. Detach the clips of the beverage holder/tray panel (A), then pull the panel upward to release the hooks (B) and remove it.

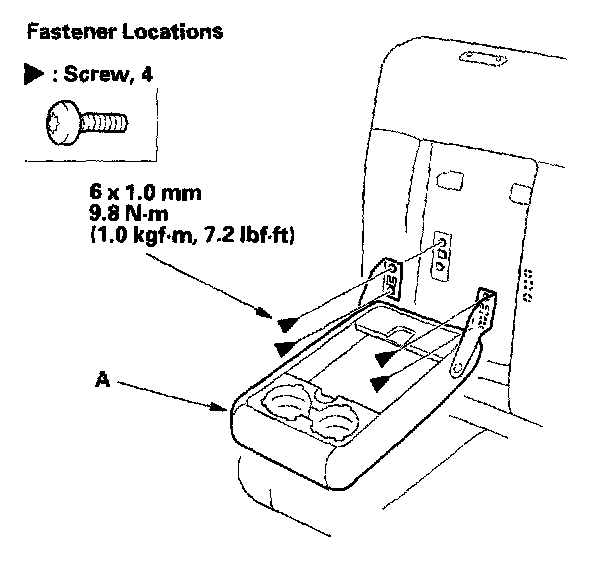

2. Using a Torx T30 bit, remove the screws, then remove the beverage holder/tray (A).

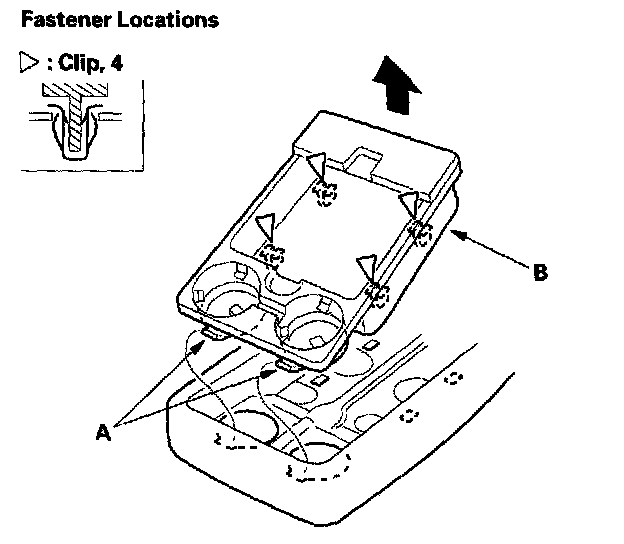

3. Detach the clips, and release the front hooks (A), then remove the beverage holder/tray (B).
4. Install the beverage holder/tray in the reverse order of removal, and replace any damaged clips.
