Speaker: Service and Repair

Speaker Replacement

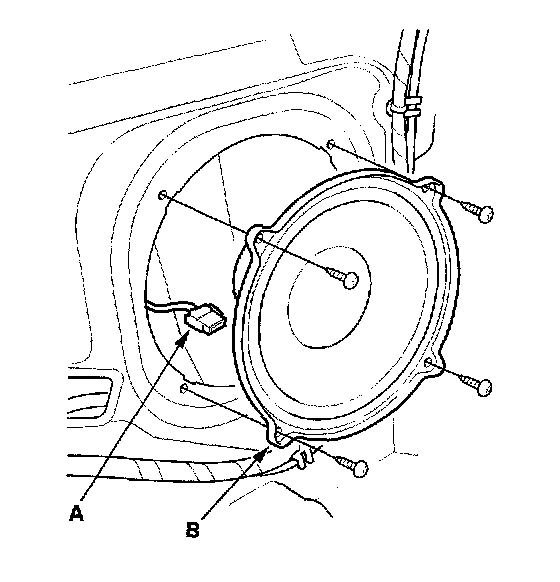

Door:

1. Remove the front door panel.




2. Remove the three screws, then disconnect the 2P connector (A) from the speaker (B).

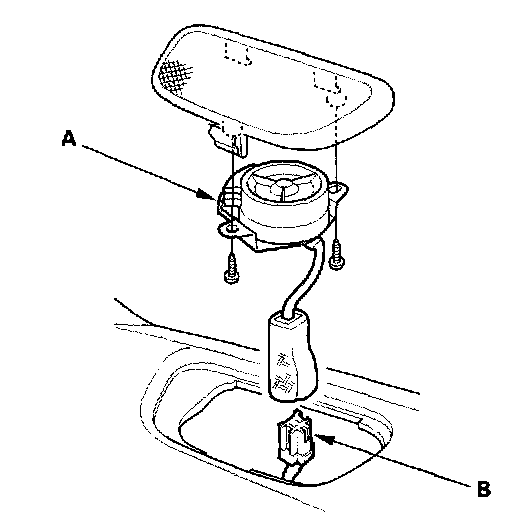

Tweeter (EX model):




1. Carefully pry the tweeter (A) out of the dashboard, then disconnect the 2P connector (B) from the tweeter.
2. Remove the screws and tweeter.

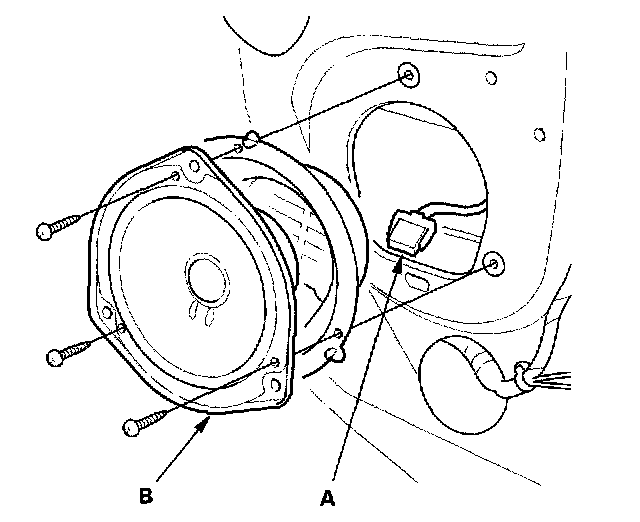

Woofer:

1. Remove the right rear trim.




2. Remove the four mounting screws, then disconnect the 2P connector (A) from the woofer (B).
