Auxiliary Jack Assembly Connector Replacement

Auxiliary Jack Assembly Connector Replacement

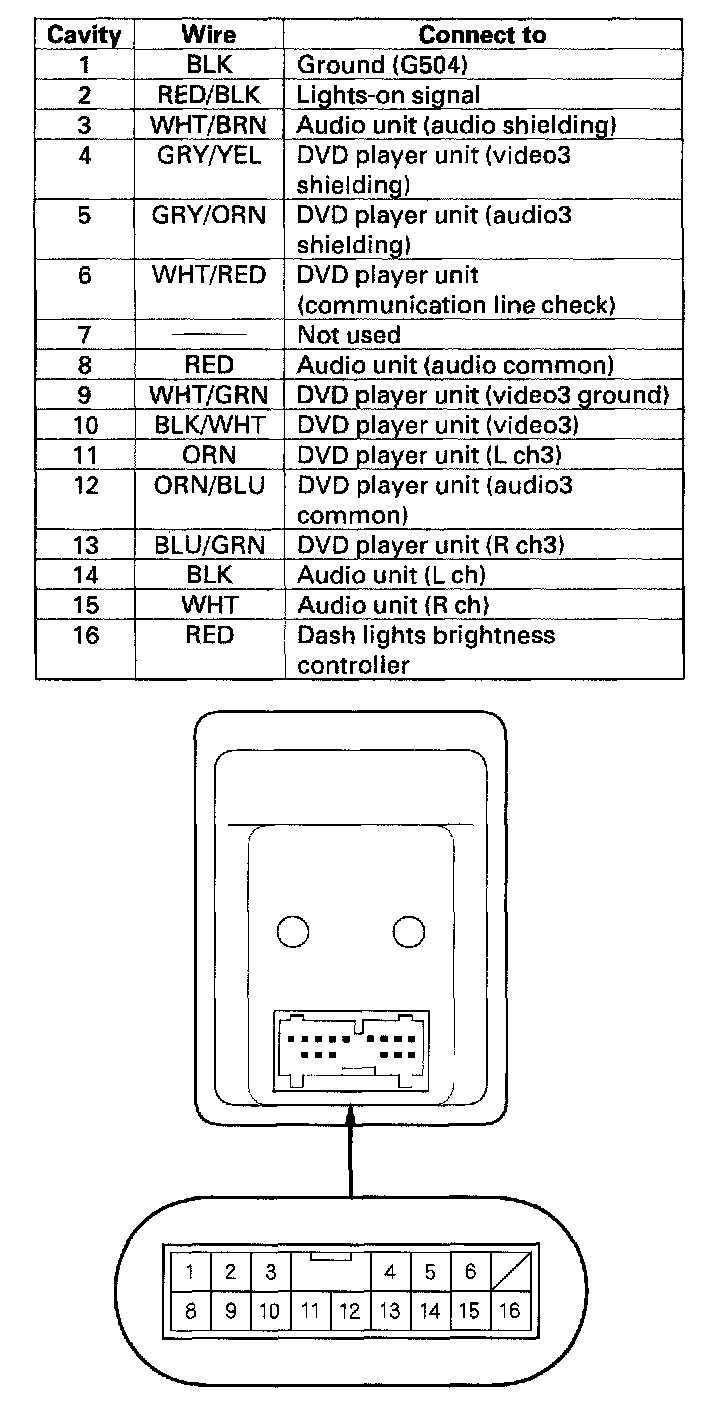

When replacing an auxiliary jack assembly connector, match the wires to the cavities listed in the table.
