Ball Joint Removal

Removal

Special Tools Required
Ball joins thread protector, 07AAF-SDAA100
Ball joint remover, 28 mm 07MAC-SL00200

NOTICE: Always use a ball joint remover to disconnect a ball joint. Do not strike the housing or any other part of the ball joint connection to disconnect it.

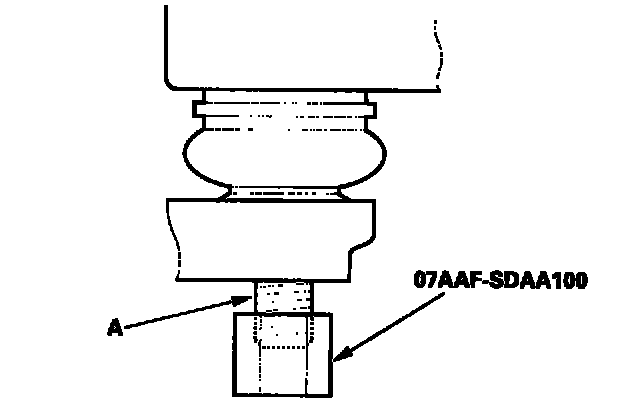

1. Install the ball joint thread protector onto the threads of the ball joint (A).

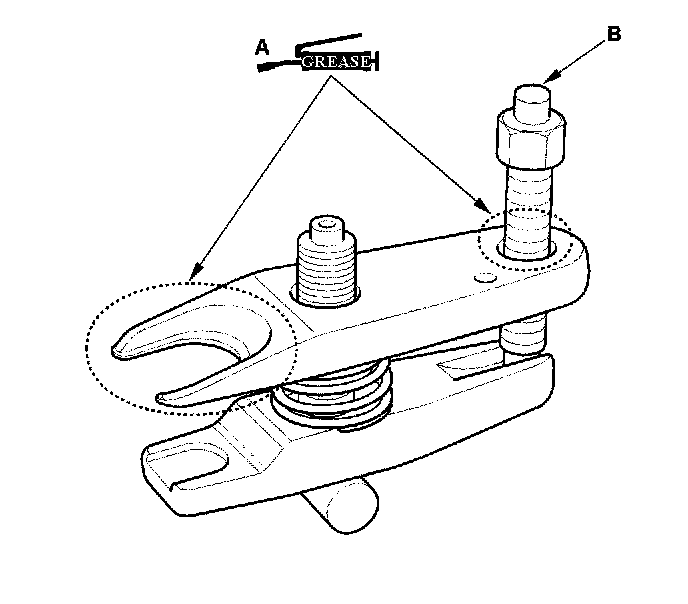

2. Apply grease to the special tool on the areas shown (A). This will ease installation of the tool and prevent damage to the pressure bolt (B) threads.

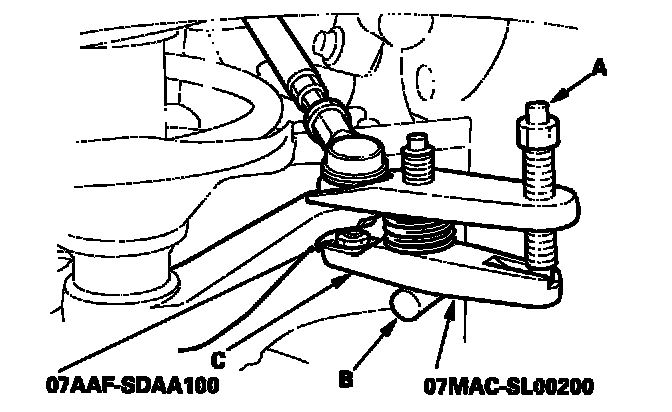

3. Loosen the pressure bolt (A), and install the special tool as shown. Insert the jaws carefully, making sure not to damage the ball joint boot. Adjust the jaw spacing by turning the adjusting bolt (B).
4. After adjusting the adjusting bolt, make sure the head of the adjusting bolt (B) is in the position shown to allow the jaw (C) to pivot.
5. With a wrench, tighten the pressure bolt until the ball joint pin pops loose from the steering arm or knuckle. If necessary, apply penetrating type lubricant to loosen the ball joint pin.

NOTE: Do not use pneumatic or electric tools on the pressure bolt.

6. Remove the tools, and pull the ball joint out: of the steering arm or knuckle. Inspect the ball joint at boot, and replace it if damaged.
